Matte and Gloss Combination Varnishes for Visual Brand Hierarchy

When a consumer picks up a cosmetic or personal care tube, their visual and tactile assessment happens simultaneously. A uniform surface finish—whether entirely glossy or completely matte—often flattens the visual impact of high-end graphic design on retail display shelves. Formulators and brand managers increasingly turn to combination varnishing to establish clear visual hierarchy, directing consumer focus toward brand names, active ingredient callouts, or certification marks.

The 30-second answer

Combination varnishing applies both matte and gloss surface coatings selectively across a multi-layer tube web to create deliberate visual and tactile contrast. By using a diffused matte base to suppress background reflections and selective high-gloss spot varnishes to reflect direct light, packaging designers highlight specific artwork elements. Because these varnishes are applied in-line on flat laminate rolls before tube forming, tight print-to-varnish registration is maintained without degrading the underlying multi-layer barrier structure.

Why finish contrast matters on retail shelves

Uniform high-gloss tubes reflect light broadly, which can wash out intricate typography under direct store lighting. Conversely, an entirely matte tube absorbs light evenly, which creates a premium, velvety look but can reduce legibility for small graphic details or primary brand logos.

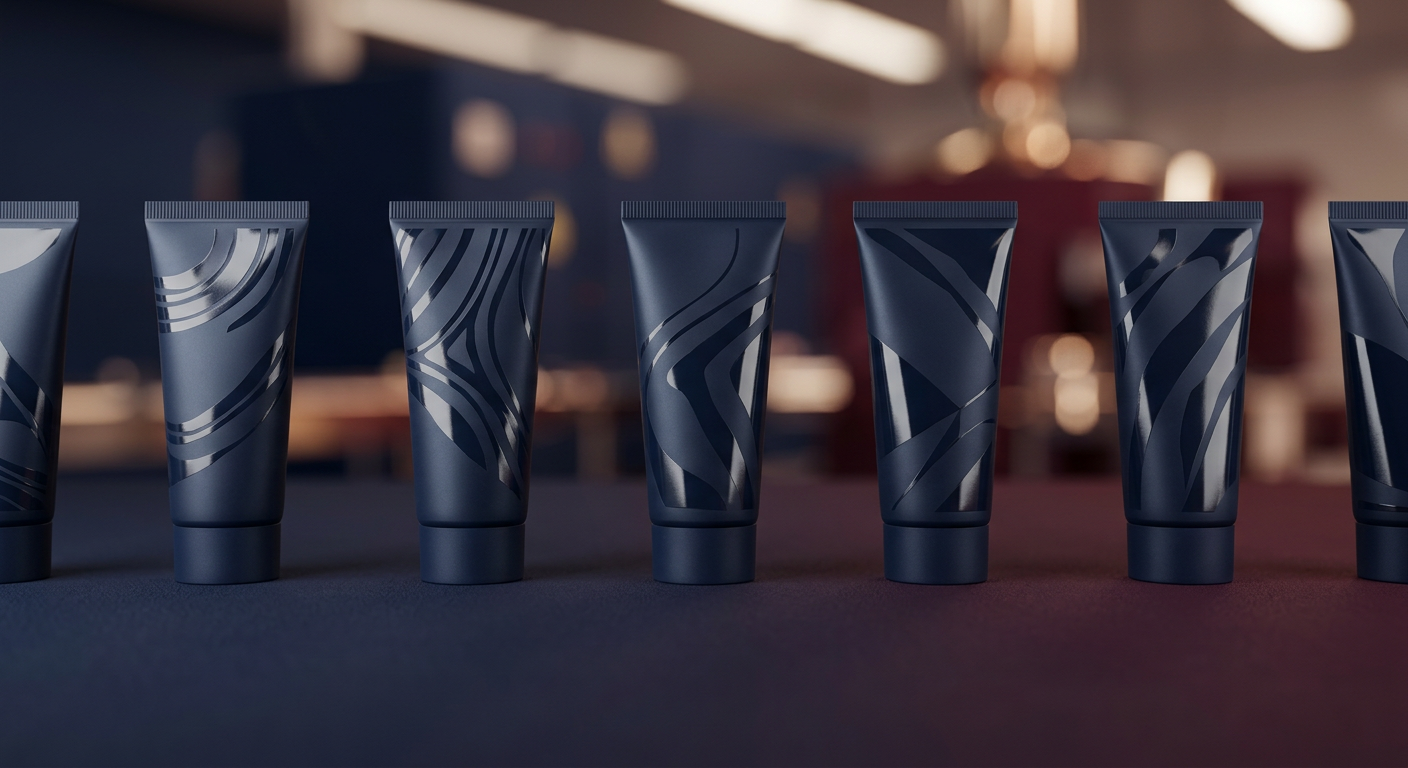

Combining both surface finishes creates dynamic contrast:

• Primary focal points: High-gloss spot varnish applied over brand marks or key benefit text catches light when the tube shifts position, drawing the eye instantly.
• Background readability: Matte flood coating eliminates harsh glare across extensive product descriptions, ingredient listings, and regulatory text.
• Tactile engagement: The subtle physical ridge between a matte-treated area and a heavy gloss deposit gives the consumer a premium sensory cue during handling.

Technical execution: Overprint varnishing on laminate web

Laminated tube manufacturing provides an inherent advantage for complex decoration: printing and coating occur while the multi-layer material is in flat web form, before slitting, seaming, and tube body formation.

UV curable matte coatings

Matte varnishes contain microscopic matting agents (typically precipitated silica) that disperse incoming light across multiple angles. Applying this as a flood coat across the printed laminate substrate creates a uniform low-gloss baseline, typically measuring between 5 to 15 gloss units (GU) at a 60-degree measurement angle.

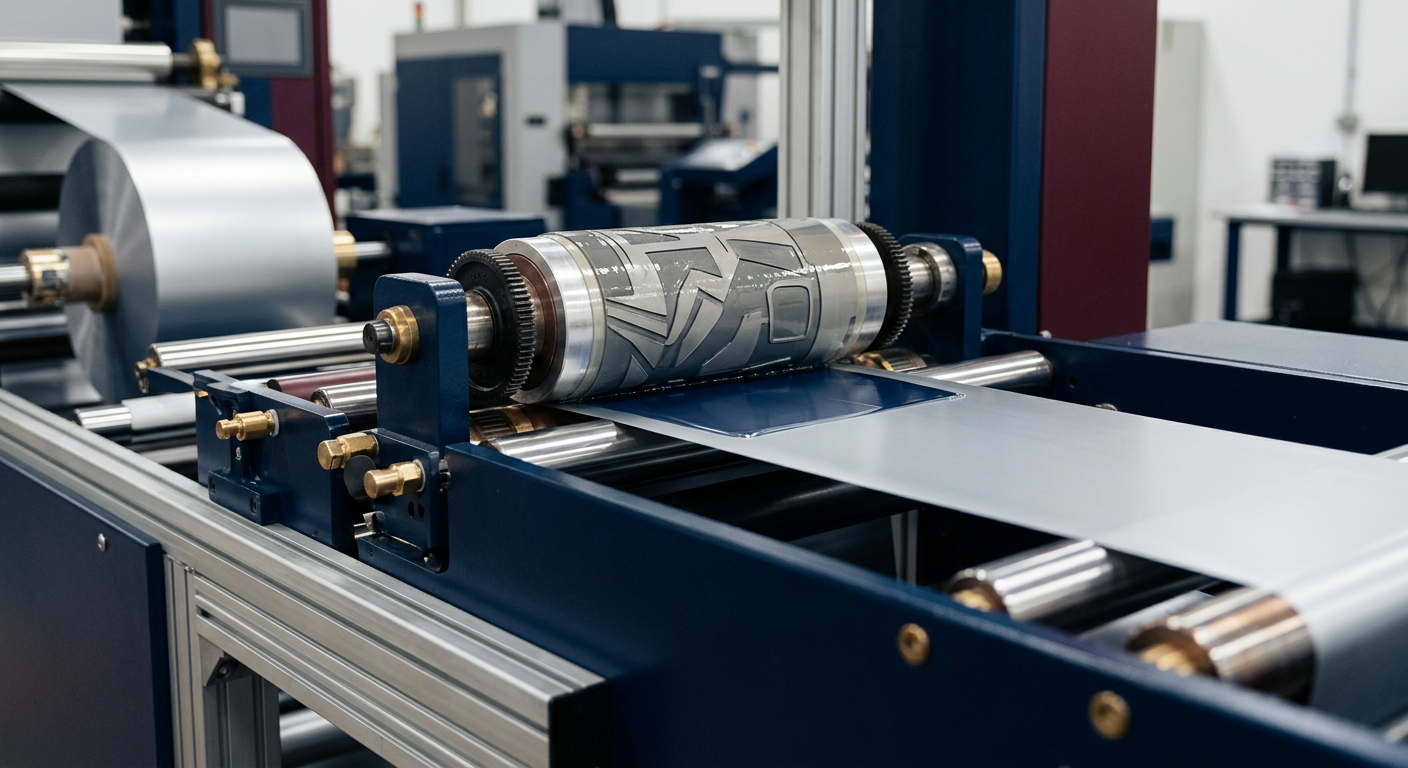

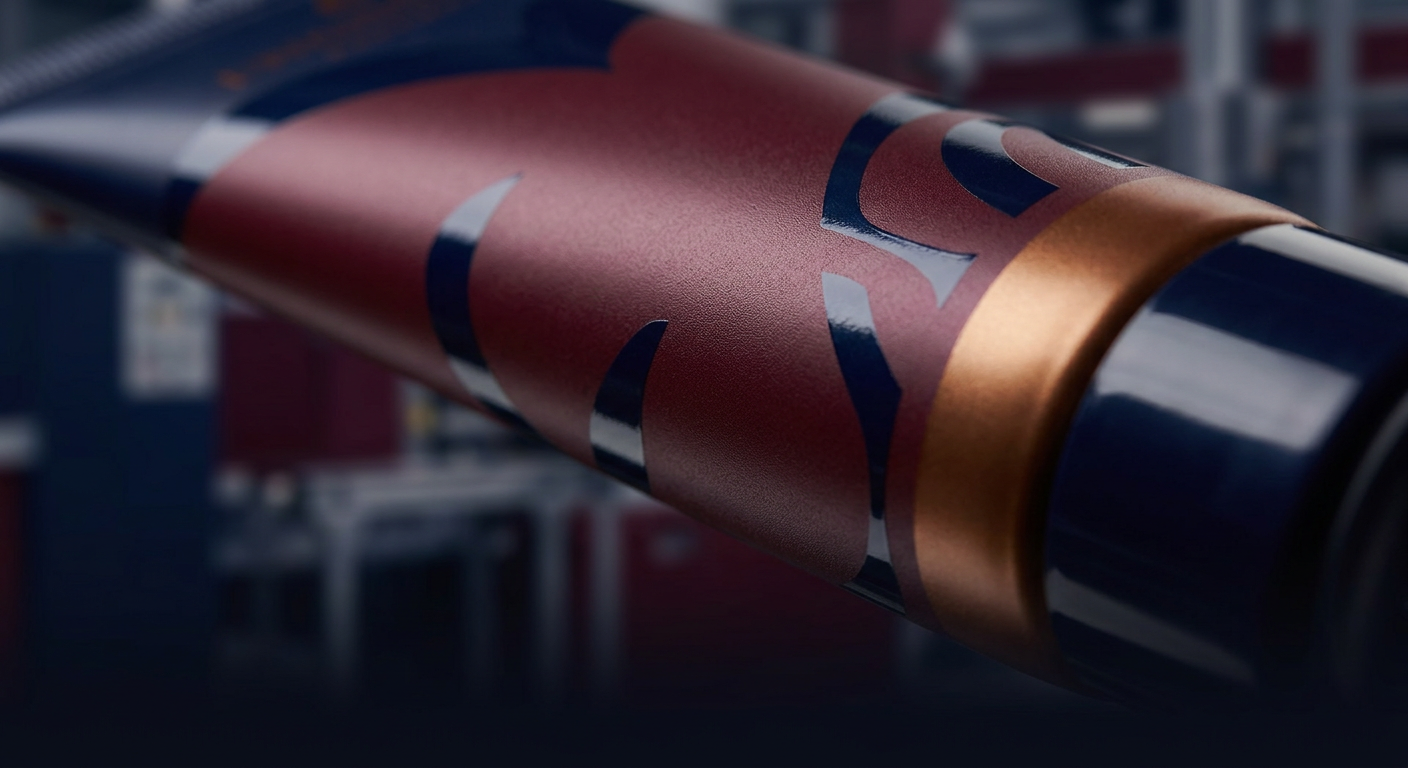

Spot gloss application and registration

Following the matte application, a high-gloss UV overprint varnish is selectively applied using a dedicated flexographic print unit. This varnish typically achieves 80 to 95 GU. Maintaining registration between the graphic print stations and the spot varnish plate is critical; modern optical tracking systems keep registration variances within ±0.15 mm to eliminate visual haloing or overlapping borders.

| Finish Parameter | Matte Base Coating | Spot Gloss Varnish | | :--- | :--- | :--- | | Typical Gloss Level (60°) | 5 – 15 GU | 80 – 95 GU | | Coating Thickness | 1.5 – 2.5 microns | 2.5 – 4.0 microns | | Tactile Profile | Soft, non-slip texture | Smooth, low-friction surface | | Primary Function | Glare reduction, legibility | Visual pop, brand accentuation |

Barrier integrity and thermal curing parameters

A critical concern for procurement teams and packaging engineers is ensuring that surface decoration never compromises the functional performance of the tube. Multi-layer structures (such as ABL with aluminium foil or PBL with EVOH barrier cores) protect sensitive formulations against oxygen ingress, moisture loss, and light exposure.

Applying multiple varnish coats requires controlled ultraviolet (UV) or LED-UV curing:

1. Thermal management: Excessive heat during UV lamp exposure can induce web curl or stress the internal tie layers binding the laminate structure. High-efficiency curing systems cure surface resins instantly at lower temperatures.
2. Chemical non-migration: The photoinitiators and acrylic resins used in the overprint varnishes must cure completely to prevent low-molecular-weight compounds from migrating through outer polymer layers.
3. Flexibility and seam adhesion: The cured varnish system must retain sufficient mechanical flexibility to withstand continuous tube squeezing during consumer use without micro-cracking or flaking along side-seam welds.

Design rules for multi-finish tube artwork

To achieve clean execution on high-speed tube conversion lines, packaging designers should follow key technical parameters when preparing artwork:

• Avoid small isolated spot gloss elements: Spot varnish elements should generally maintain a minimum stroke width of 0.5 mm to ensure clean plate transfer and avoid varnish bleeding.
• Side-seam clearance: Keep heavy gloss varnishes clear of the side-seam welding margins by at least 1.0 to 1.5 mm to prevent interference during high-frequency or hot-air seam fusion.
• Shoulder transition: Terminate flood matte varnishes smoothly near the tube shoulder margin to ensure clean mechanical crimping and heading integration.

Talking to your packaging manufacturer

When requesting samples or preparing a decoration brief for combination-finish laminated tubes, provide the following details:

• Target gloss levels: Specify the desired contrast ratio (e.g., dead-matte base vs. ultra-high gloss accent).
• Artwork vector separation: Provide the spot varnish as a distinct spot-color separation layer with explicit trapping values.
• Formulation properties: Disclose oil, alcohol, or solvent content in the formulation to verify chemical resistance of the outer surface coating.

At Aaywon, we manufacture multi-layer ABL and PBL laminated tubes with fully integrated in-house printing and precision varnishing lines at our facility in Baddi, Himachal Pradesh. Send your design specifications and barrier requirements to our technical team, and we will evaluate your artwork and provide production recommendations within 48 hours.
