Formulating a high-potency Vitamin C emulsion requires balancing active efficacy with chemical stability. L-ascorbic acid oxidizes rapidly in the presence of oxygen and UV light, turning clear or pale cream formulations into an unmarketable dark yellow or brown paste. Choosing the correct primary packaging structure determines whether an active dermacosmetic product survives its intended 18-to-24-month commercial shelf life.
The 30-second answer
High-potency Vitamin C (L-ascorbic acid) formulations require multi-layer Aluminium Barrier Laminate (ABL) tubes with zero-pinhole foil cores. While EVOH-based PBL tubes offer moderate barrier protection, only an aluminium core provides near-zero Oxygen Transmission Rates (OTR) and total light block. Pairing ABL web structures with low-aperture nozzles or foil-sealed orifices ensures active emulsions remain chemically stable and visually pristine throughout consumer use.
The Oxidation Mechanism in Active Ascorbic Acid
L-ascorbic acid is inherently unstable in aqueous and emulsion bases. When ambient oxygen penetrates primary packaging, the ascorbic acid molecule undergoes reversible oxidation into dehydroascorbic acid, followed by irreversible hydrolysis into diketogulonic acid.
This breakdown manifests in three visible failures:
- Color shift: The emulsion turns from white or translucent to amber and brown.
- Loss of efficacy: Active potency drops below stated label claims.
- Rheological changes: Phase separation or thinning caused by degraded stabilizer networks.
Because oxidation is accelerated by exposure to ambient light and elevated temperatures, the packaging wall must provide both gas impermeability and total opacity.
ABL vs. PBL: Evaluating Barrier Performance for Actives
Selecting between Aluminium Barrier Laminates (ABL) and Plastic Barrier Laminates (PBL) comes down to permeability thresholds.
| Barrier Parameter | Standard Multi-Layer PBL (EVOH Core) | Multi-Layer ABL (Aluminium Core) | | :--- | :--- | :--- | | Oxygen Transmission Rate (OTR) | 0.5 to 2.5 cc/m²/day | < 0.01 cc/m²/day (Near Zero) | | Water Vapor Transmission (WVTR) | 0.5 to 1.5 g/m²/day | < 0.01 g/m²/day | | Light Transmission | Partial to high (dependent on pigment) | Complete 100% barrier | | Restitution / 'Suck-Back' | Elastic recovery draws air back into pack | 'Dead-fold' collapse reduces air intake |
For low-dose botanical derivatives (like magnesium ascorbyl phosphate), EVOH-based PBL is often sufficient. However, for active formulas with pure L-ascorbic acid concentrations exceeding 5%, ABL is the standard industry specification.
Controlling Pinholing and Web Integrity
A critical factor in ABL manufacturing is foil ductility and tension control. Foil cores typically range from 9 to 12 microns in thickness. During continuous high-speed tube forming, inappropriate web tension or poor longitudinal heat sealing can induce micro-cracks known as pinholes.
To ensure complete barrier protection:
- Foil Alloy Selection: High-purity, soft-tempered aluminium alloys accommodate mechanical forming stress without cracking.
- Copolymer Interlayers: Polyethylene tie-layers buffer the foil against mechanical shear during tube heading and side-seaming.

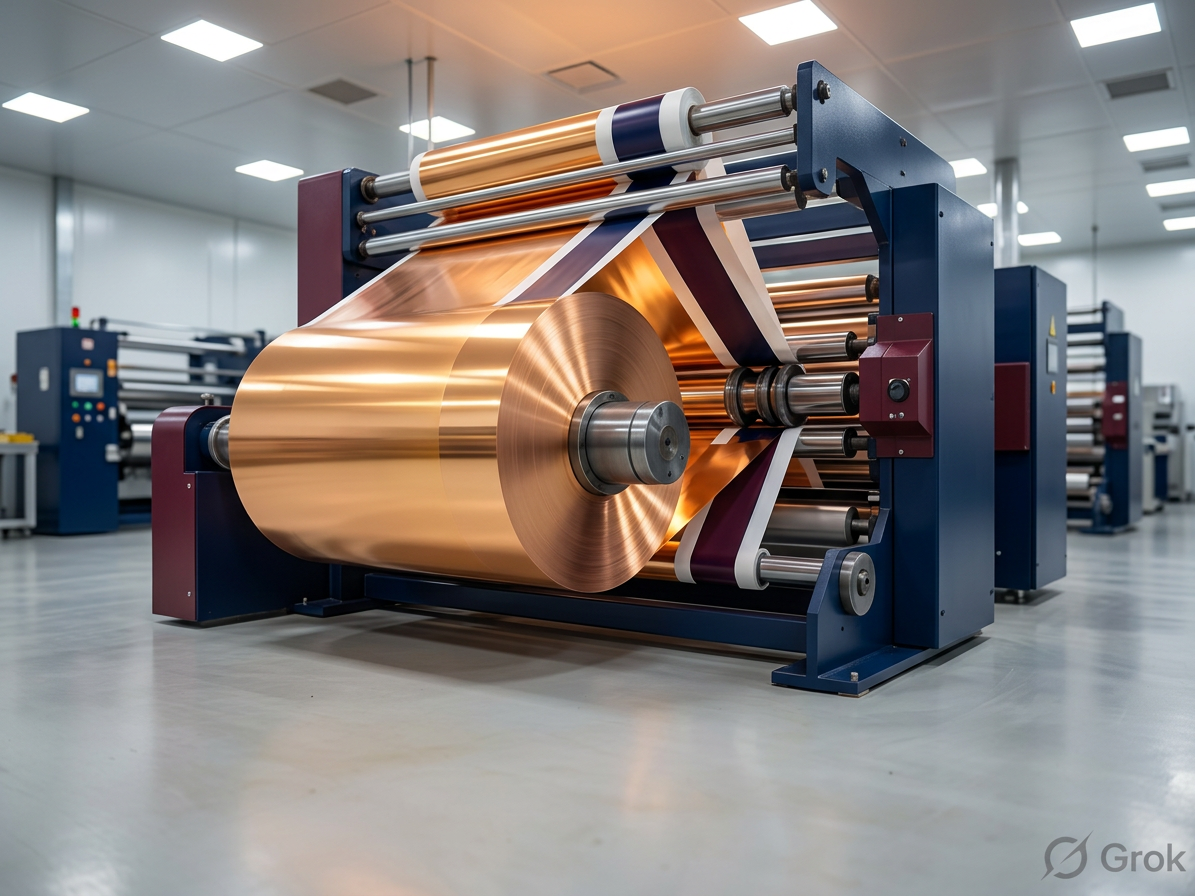

- In-Line Optical Inspection: High-speed sensors scan the laminated web during slitting to verify zero pinhole defects before sleeve formation.
Dispensing Orifice Design to Prevent Headspace Oxidation
The tube body is only half the barrier system. The shoulder, nozzle, and closure must prevent air ingress from the point of filling to the final consumer application.

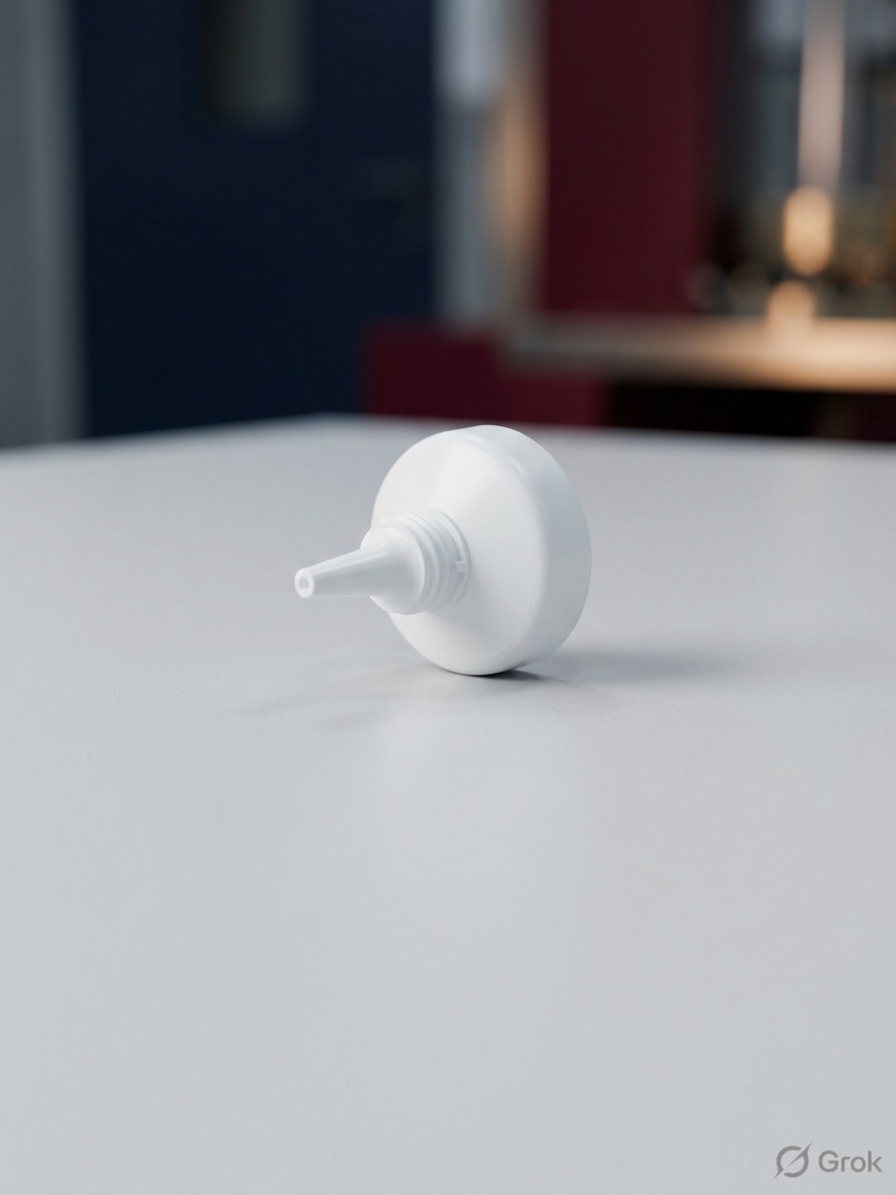

Extended Nozzles and Reduced Orifice Diameters
For high-value serums, reducing the nozzle diameter to 1.5mm to 2.0mm limits formula exposure to air at the tip. Needle-nose and cannula nozzles provide precise droplet dosing while minimizing residual product build-up at the orifice.
Inductive Foil Sealing and Blind-End Nozzles
Tubes engineered for active cosmetics often feature blind-end heads molded directly into the shoulder plastic. The consumer pierces the barrier membrane using a puncturing cap on first use, guaranteeing zero oxygen ingress during warehouse storage and transit.
Controlled Collapse Properties
ABL tubes possess a mechanical 'dead-fold' characteristic. When squeezed, the tube body deforms permanently rather than springing back to its original circular profile. This structural behavior significantly reduces the volume of ambient air drawn back into the tube cavity during daily use.
Talking to Your Manufacturer About Active Skincare Tubes
When briefing a tube manufacturer for a Vitamin C formulation, define your barrier requirements upfront:
- Active concentration and pH: Share target formulation acidity (typically pH 2.5 to 3.5 for ascorbic acid) to verify tie-layer compatibility.
- Shelf-life target: Specify ambient stability expectations (e.g., 24 months at 25°C/60% RH).
- Orifice specification: Request blind-end shoulders, tamper-evident induction foils, or extended cannula nozzles.
- Laminate structure: Request a 250-to-300-micron total web thickness containing an integrated 9-to-12-micron aluminium foil barrier.
Aaywon Lamitubes manufactures multi-layer ABL packaging engineered for active dermacosmetic and pharmaceutical formulations. We operate from our manufacturing plant in Baddi, Himachal Pradesh, and respond to technical briefs within 48 hours.
