Agile Tooling and Low Minimum Order Quantities for Emerging Beauty Brands

When scaling a new skincare serum or targeted treatment cream, procurement teams encounter a common bottleneck. The formulation requires the active barrier protection of a multi-layer laminate, but initial sales forecasts only justify an initial run of 10,000 to 25,000 units. Most high-speed tube converters turn these orders down or quote prohibitive setup surcharges.

The 30-second answer

Low MOQ laminated tube manufacturing is made possible by standardized slitting mandrels, modular heading tooling, and digital press registration. By eliminating the mechanical calibration lag between diameter changes, converters can execute short-batch ABL and PBL production runs while maintaining precise seam welding, accurate shoulder alignment, and minimal setup scrap.

The Mechanical Cost of Tube Line Changeovers

To understand why laminated tube MOQs are traditionally high, one must look at the machinery involved in sleeve forming and heading.

A laminated tube starts as a flat, multi-layer printed web. Converting that web into a finished, capped container requires three distinct mechanical transitions:

1. Web Slitting and Unwinding: Slitting wide master rolls down to the exact circumference of the target tube diameter.
2. High-Frequency or Hot-Air Seam Welding: Forming the flat web into a continuous cylindrical sleeve over a dedicated mandrel.
3. Shoulder Heading and Orifice Compression: Compression molding or thermal fusing an injection-molded shoulder directly onto the cut sleeve.

On conventional lines, changing from a 35mm diameter mandrel to a 25mm diameter mandrel requires mechanical adjustments across forming belts, seam chillers, rotary cutting blades, and transfer arms. Without quick-change tooling, resetting and dialing in seam hermeticity consumes hundreds of meters of laminate webbing before achieving production stability.

Modular Tooling Architecture on Slitting Lines

Minimizing startup waste requires tooling that drops into calibrated mechanical alignment without manual trial-and-error.

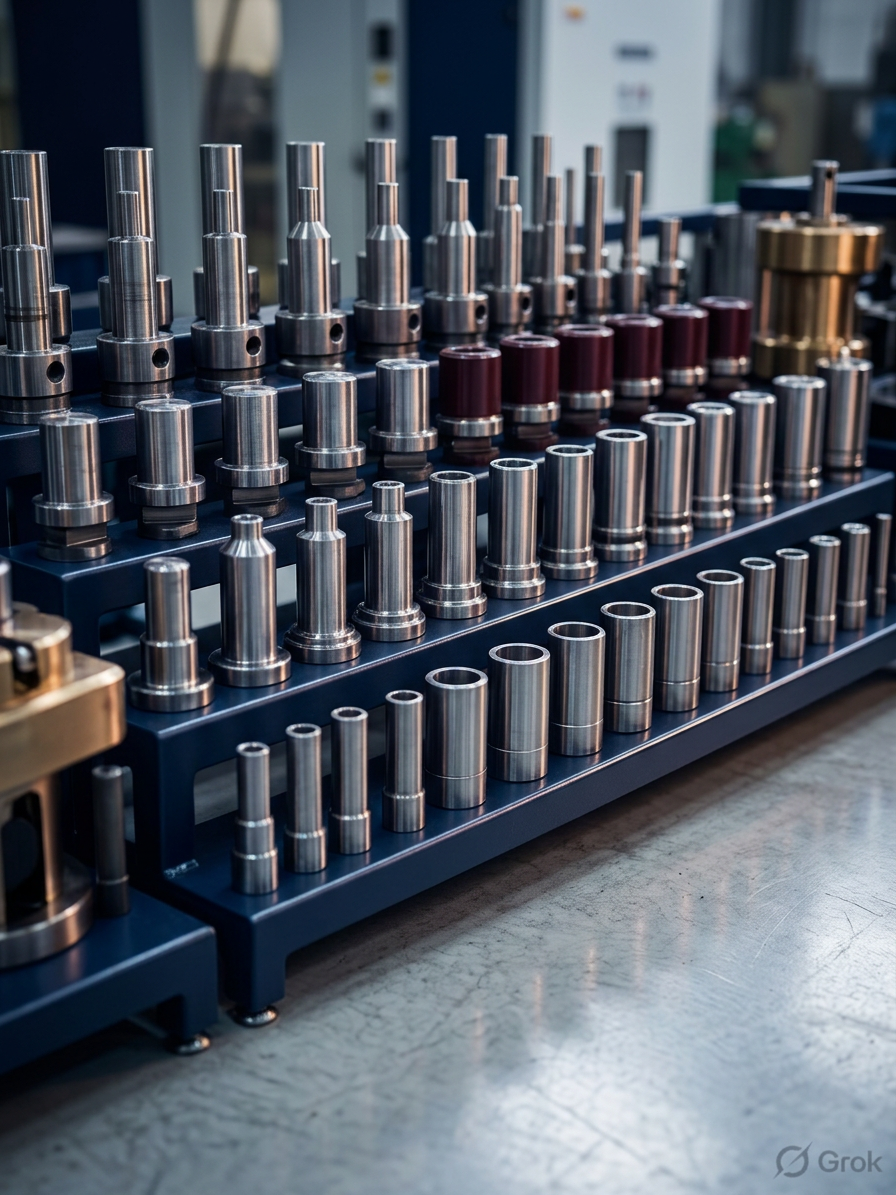

• Standardized Diameter Mandrels: Using pre-indexed mandrel assemblies allows operators to swap body sizes rapidly without altering the centerline geometry of the welding station.
• Digital Web Tension Controls: Multi-layer ABL and PBL laminates have different elongation properties under tension. Digital load-cell tensioners automatically compensate for substrate thickness during web feeding, eliminating wrinkling during short setups.
• Preset Thermal Profiles: High-frequency induction generators for ABL and hot-air welding nozzles for PBL feature stored recipe parameters for each diameter and web gauge. Operators achieve seam bonding on the first attempt.

Web Scrap Reduction During Sleeve Forming

In standard long-run operations, running 150 meters of setup scrap is negligible across a 500,000-unit order. On a 15,000-unit batch, that same setup waste represents an unacceptable percentage of total material cost. Pre-calibrated heating stations and digital registration sensors reduce startup trim and calibration waste to minimal lengths.

| Process Step | Conventional Setup Waste | Quick-Change Modular Setup Waste | | :--- | :--- | :--- | | Web Tracking Alignment | 40–60 meters | 5–10 meters | | Side Seam Heat Calibration | 50–80 meters | 8–12 meters | | Cut-to-Length Registration | 30–50 meters | 5–8 meters | | Total Startup Webbing | 120–190 meters | 18–30 meters |

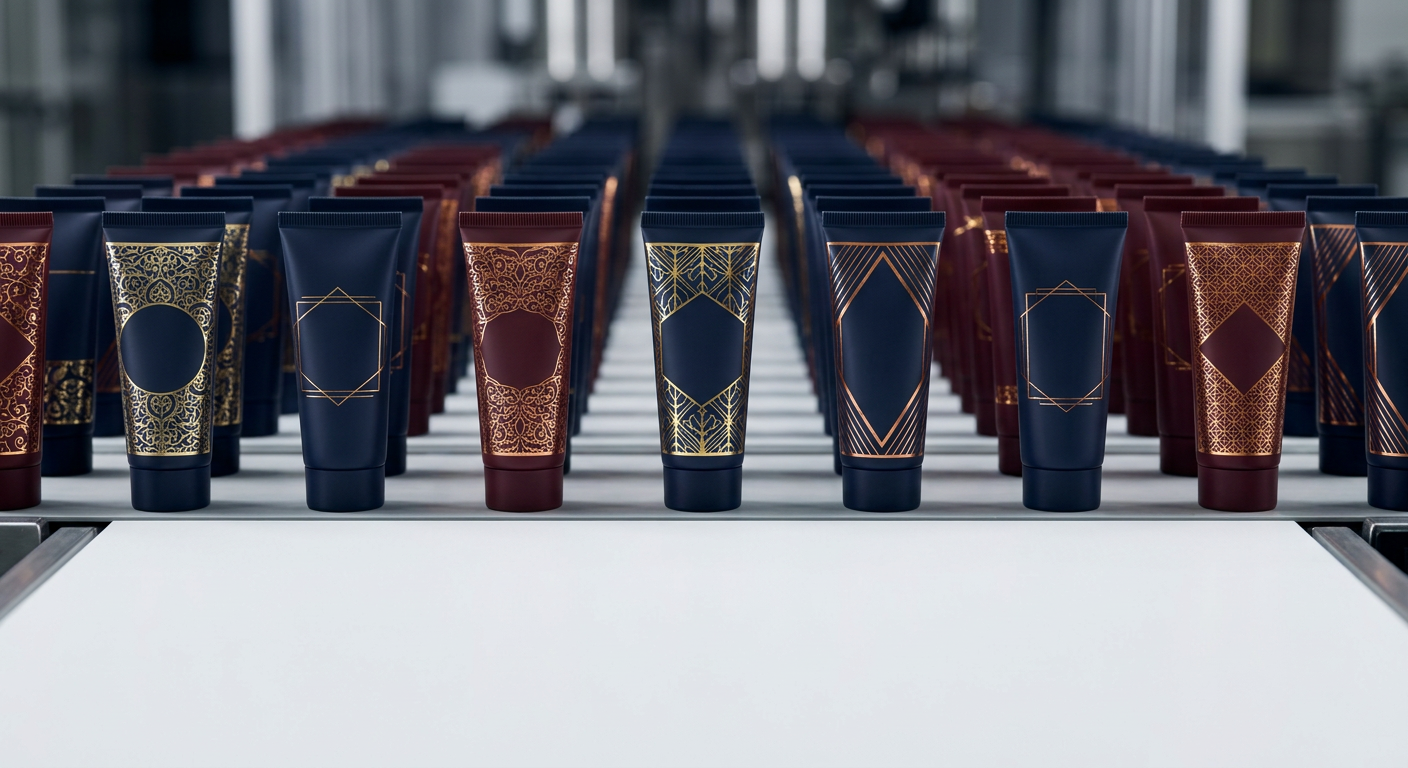

Preserving High-End Decoration on Short Batches

Lower volumes should not force brands to settle for plain white tubes or secondary pressure-sensitive labels that peel in wet bathroom environments. In-line flexographic printing and surface finishing remain fully accessible on short-batch multi-layer laminate webs.

• Flexographic High-Definition Printing: Inline plates reproduce fine micro-type, tonal vignettes, and solid line-work with identical fidelity across both pilot batches and commercial runs.
• Selective Surface Contrasts: Combinations of full-coverage matte varnishes with high-gloss spot UV accents can be applied in the same pass as base graphics.
• Cold Foil Embellishment: Metallic accents, border bands, and premium typography can be integrated directly onto the outer polyethylene layer without costly stamping dies.

Multi-Layer Barrier Security for Sensitive Formulations

Short-run packaging must deliver the exact same shelf-life stability as mass-market inventory. Emerging brands often formulate with high concentrations of active botanicals, pure essential oils, vitamins, or sensitive chemical UV filters. These ingredients deteriorate quickly if exposed to ambient oxygen or moisture ingress.

• ABL (Aluminium Barrier Laminate): Incorporates an impermeable aluminium foil core layer (typically 9 to 12 microns thick) bonded between outer and inner copolymer layers. It blocks 100% of oxygen, light, and water vapor transmission.

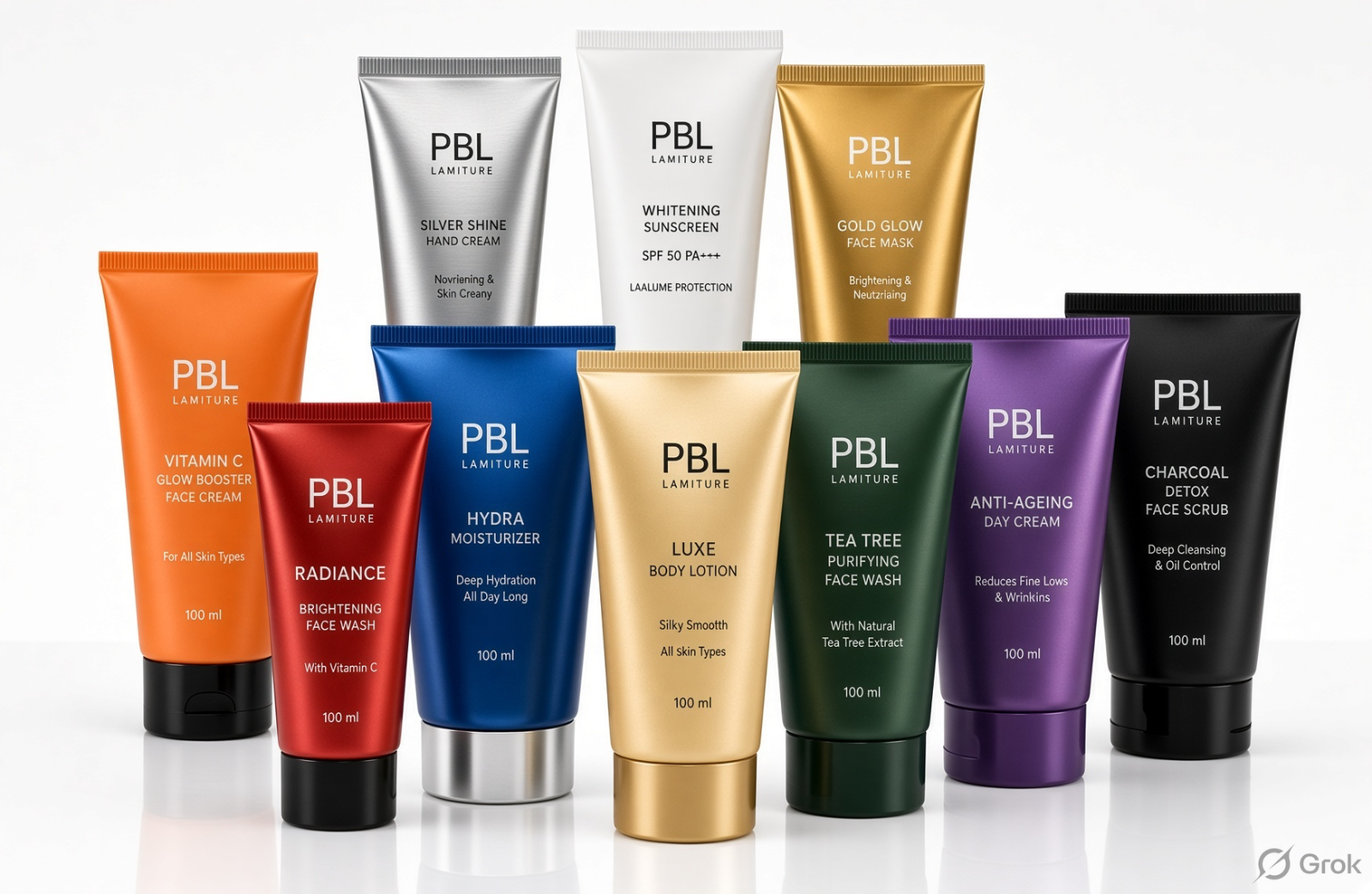

• PBL (Plastic Barrier Laminate): Uses an ethylene vinyl alcohol (EVOH) polymer barrier core embedded within high-density and linear low-density polyethylene plies. It prevents product oxidation while retaining the aesthetic elastic 'bounce-back' shape after squeezing.

Both structures can be processed through modular line setups, allowing emerging brands to choose the correct barrier chemistry based on formulation sensitivity rather than converter MOQ restrictions.

Talking to Your Manufacturer

When briefing a packaging manufacturer on pilot or short-run laminated tube projects, come prepared with exact technical parameters:

• Formulation Characteristics: Note active ingredients, pH levels, essential oil percentages, or solvent carriers that determine whether ABL or PBL is necessary.
• Dimensions and Fill Volume: Specify target diameter (e.g., 19mm, 25mm, 35mm, or 50mm) and required tube length to achieve your target fill volume.
• Cap and Orifice Specifications: Identify whether your application needs an open nozzle, needle-nose tip for serums, tamper-evident foil seal, or specific flip-top orientation.
• Artwork Layering: Prepare vector art files with clear separations for process colors, spot varnishes, and cold foiling.

Aaywon manufactures multi-layer ABL and PBL laminated tubes at our production plant in Baddi, Himachal Pradesh. Our engineering team reviews technical briefs, assesses substrate compatibility, and provides detailed commercial quotes within 48 hours.
