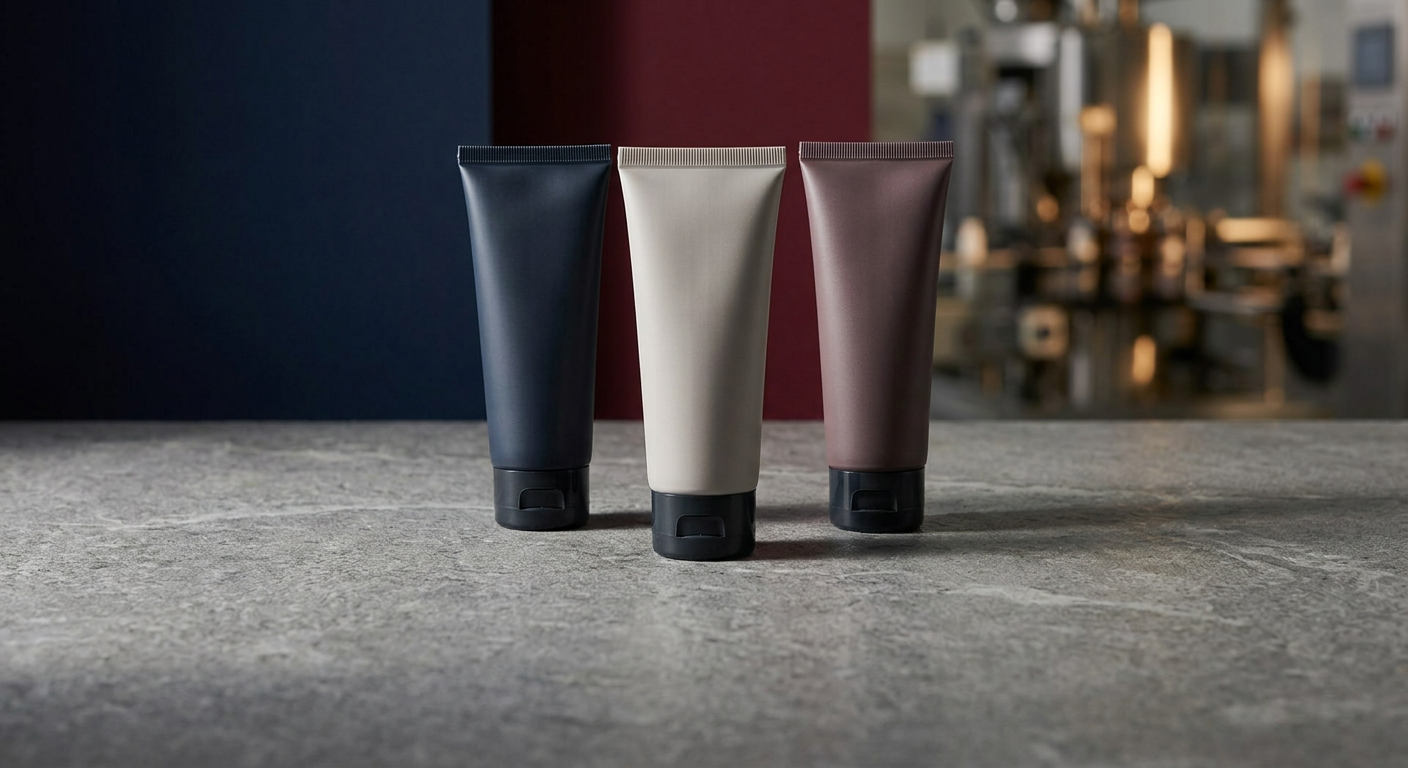

How Multi-Layer PBL Tubes Protect Active Cosmetic Formulations

When formulating high-potency skincare containing active ingredients like L-ascorbic acid, retinoids, peptides, or botanical extracts, packaging selection directly affects product efficacy. Cosmetic chemists and packaging engineers frequently face a tradeoff between barrier integrity and shelf appeal. Choosing an engineered multi-layer Plastic Barrier Laminate (PBL) structure resolves this challenge by delivering gas-tight protection without sacrificing the package's physical recovery.

The 30-second answer

Multi-layer Plastic Barrier Laminate (PBL) tubes integrate an internal EVOH (Ethylene Vinyl Alcohol) polymer barrier between polyolefin structural layers, preventing oxygen ingress and volatile fragrance loss while maintaining complete elastic bounce-back. For cosmetic formulations vulnerable to oxidation or UV-induced degradation, PBL offers a resilient alternative to extruded plastic without the permanent creasing typical of foil-based laminates.

The vulnerability of active cosmetic formulations

Active ingredients in modern cosmetics are biochemically delicate. When formulating products aimed at anti-aging, hyperpigmentation, or barrier repair, several environmental factors threaten shelf life:

• Oxygen ingress. Atmospheric oxygen oxidizes ascorbic acid into dehydroascorbic acid, turning formulations yellow or brown and neutralizing antioxidant properties. Retinoids similarly break down into inactive photoproducts when exposed to trace oxygen and ambient light.
• Moisture migration. Water loss through permeable tube walls alters emulsion stability, leading to phase separation, increased viscosity, and localized crystallization of active compounds.
• Loss of volatile compounds. Essential oils, botanical terpenes, and fragrance compounds can permeate standard polymer walls, leaving formulations chemically altered and scent-depleted.

Standard single-layer or extruded plastic tubes allow gas molecules to migrate through the polymer matrix over time, limiting real-world shelf stability to a few months.

Deconstructing the multi-layer PBL structure

Plastic Barrier Laminate is not a single extruded film. It is an engineered composite web made of multiple functional layers, laminated together under precise temperature and pressure controls.

A typical multi-layer PBL tube wall includes:

• Outer Polyethylene (PE) layer. Provides a smooth, uniform substrate for high-resolution printing, varnishing, and cold-foil application while shielding the core from external abrasion.
• Tie resin layers. Specialized adhesive copolymer layers that permanently bond dissimilar polymer films, preventing delamination over the product lifecycle.
• EVOH barrier core. Ethylene Vinyl Alcohol acts as the central gas barrier. Despite measuring only 5 to 25 microns thick within the overall laminate structure, EVOH provides exceptional resistance to oxygen, nitrogen, carbon dioxide, and organic aromas.
• Inner Polyethylene (PE) contact layer. Formulated for chemical inertness, ensuring no chemical interaction, leaching, or scalping occurs between the tube wall and the bulk cosmetic emulsion.

PBL vs. ABL vs. Extruded Plastic for Skincare

Selecting the correct tube laminate requires balancing formulation sensitivity against aesthetic objectives.

| Performance Metric | Extruded Plastic | Multi-Layer PBL (EVOH Core) | Aluminium Barrier Laminate (ABL) | | :--- | :--- | :--- | :--- | | Oxygen Barrier | Low to Moderate | High (Gas-tight EVOH) | Complete (Foil barrier) | | Moisture Barrier | Moderate | High | Complete | | Elastic Recovery | Excellent | Excellent (No permanent creasing) | None (Dead-fold deformation) | | Graphics & Finish | Surface print / Offset | 360-degree HD flexographic | 360-degree HD flexographic | | Formulation Target | Basic lotions & wash-off | Actives, serums, dermo-cosmetics | Pharma ointments, chemical pastes |

While Aluminium Barrier Laminate (ABL) provides the ultimate barrier against gas and moisture, it exhibits 'dead-fold' behavior. Every time a consumer squeezes an ABL tube, it creases and stays collapsed. In luxury cosmetic and personal care applications, brands often prefer PBL because the tube immediately returns to its original cylindrical shape after each use, keeping brand typography and graphics flat and legible.

Surface decoration and aesthetic control

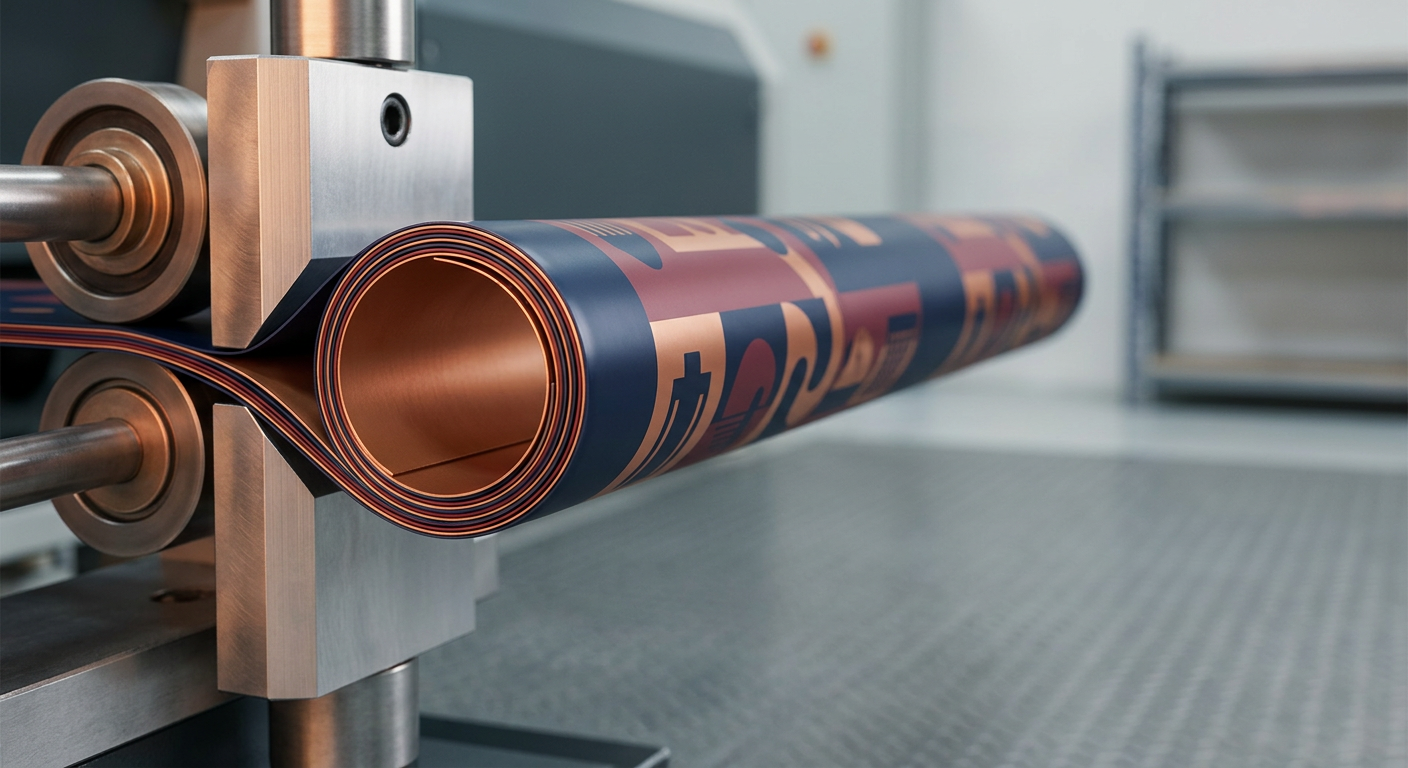

Because PBL is printed as a flat web before being formed into a tube cylinder, brands achieve visual precision that is impossible on pre-formed extruded plastic sleeves.

• Edge-to-edge printing. The flat lamination process allows continuous 360-degree graphics with minimal seam disruption.
• Combination varnishes. High-precision inline printing presses apply alternating zones of tactile soft-touch matte and high-gloss spot varnishes directly over the outer PE layer.
• Cold foil stamping. Metallic accents and fine typography can be embedded with microscopic registration accuracy before the tube sleeve is welded and headed.

Compatibility testing and seal integrity

Deploying a multi-layer PBL tube for an active formula requires disciplined testing protocols prior to commercial filling:

1. Accelerated oven stability. Filled tubes undergo storage at 40°C and 75% relative humidity for 12 weeks to monitor for active degradation, weight loss, or emulsion separation.
2. Migration and scalping tests. Analytical testing confirms that volatile active compounds or preservatives do not absorb into the inner polyethylene contact layer.
3. Shoulder weld and seam burst testing. Pneumatic pressure testing validates that the high-frequency shoulder weld and longitudinal seam withstand distribution pressures without micro-fissuring.

Talking to your tube manufacturer

When specifying a multi-layer PBL tube for active skincare, provide your packaging partner with the key chemical characteristics of the bulk formula. Be prepared to discuss:

• The specific active ingredients and their oxidation sensitivities.
• Target shelf-life requirements (e.g., 24 months vs. 36 months).

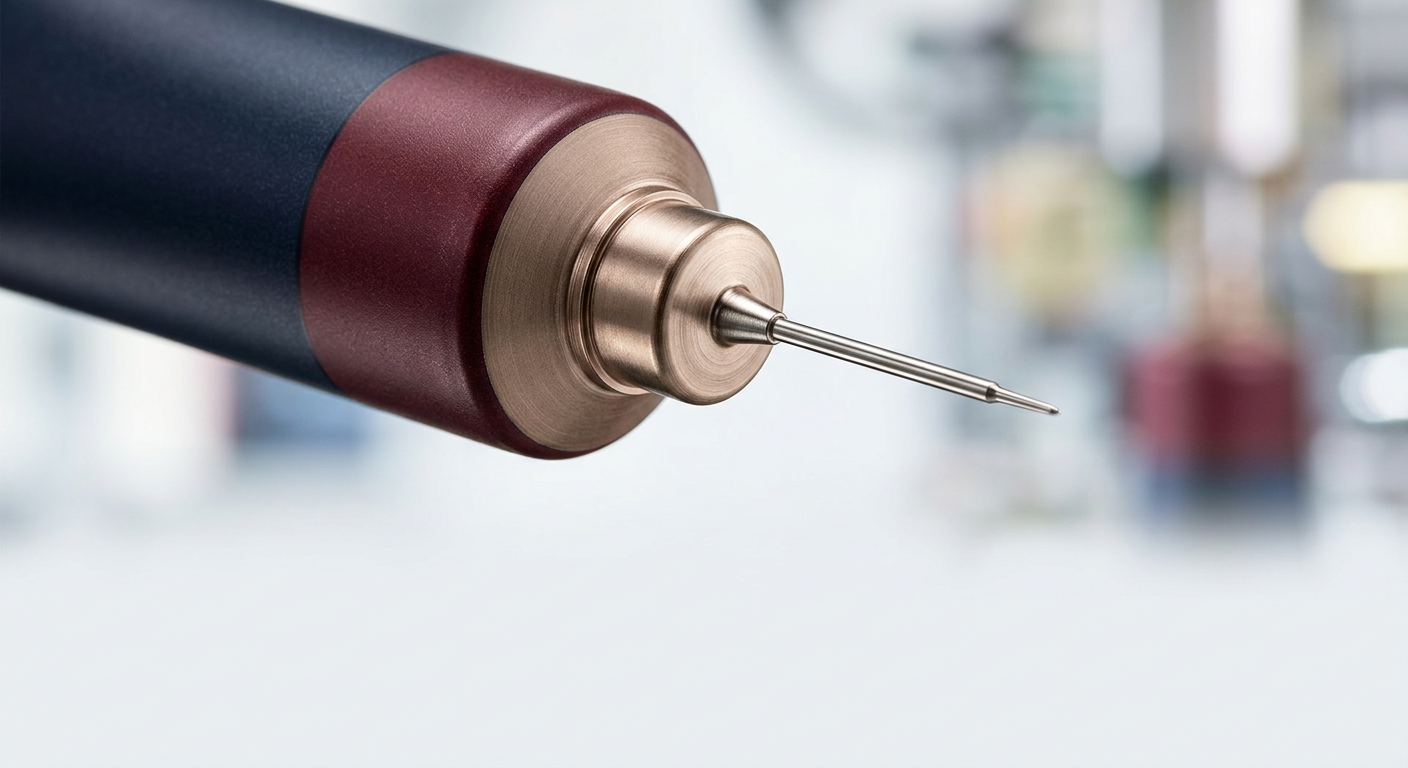

• Viscosity and target dispensing volume, which determine the tube orifice diameter and closure type (flip-top, screw cap, or precision cannula nozzle).
• Surface finish preferences, including matte/gloss varnish boundaries and cold foil requirements.

Aaywon manufactures engineered multi-layer laminated tubes at our production facility in Baddi, Himachal Pradesh. Our technical team assists formulation and procurement managers with laminate selection, custom dimensional tooling, and inline decoration, providing detailed specifications and quotations within 48 hours of receiving your brief.
