Color Matching Protocols Under Standardized D65 Plant Lighting

A cosmetic brand owner signs off on a physical draw-down proof under the warm ambient light of a corporate boardroom, only to discover that the first commercial production batch looks perceptibly shifted on retail shelves. In multi-layer tube manufacturing, visual shade discrepancies between pilot runs and full-scale runs are rarely caused by printing press defects alone; they stem from unstandardized viewing conditions, metamerism, and subjective color evaluation.

The 30-second answer

Reliable color matching across multi-layer laminated tubes requires objective spectral measurement backed by standardized D65 illumination. By utilizing digital spectrophotometers calibrated to tight Delta E (ΔE) thresholds and verifying printed webbing within controlled D65 light booths, packaging converters eliminate ambient lighting distortion and metamerism. This systematic approach ensures that corporate spot colors and fine half-tones appear identical whether printed on Aluminium Barrier Laminates (ABL) or Plastic Barrier Laminates (PBL).

Why Visual Color Approvals Fail in Tube Manufacturing

Human color perception is inherently subjective and easily corrupted by surroundings. A press operator checking a printed web under standard cool-white fluorescent factory lights sees a completely different spectral profile than a quality manager checking the same tube under warm office LEDs or indirect sunlight.

This phenomenon—known as metamerism—occurs when two color samples match under one light source but diverge under another. In high-speed tube printing, relying on unassisted visual checks creates three major operational risks:

• Spectral shift across retail environments: Tube colors that pass visual inspection in the pressroom shift into unflattering undertones under supermarket point-of-sale lighting.
• Batch-to-batch drift: Without mathematical spectral targets, successive production batches slowly wander from the approved master standard over months of re-orders.
• Substrate optical interference: Multi-layer substrates reflect light differently depending on their internal core layers, requiring precise optical measurement rather than visual estimation.

The Science of Standardized D65 Illumination

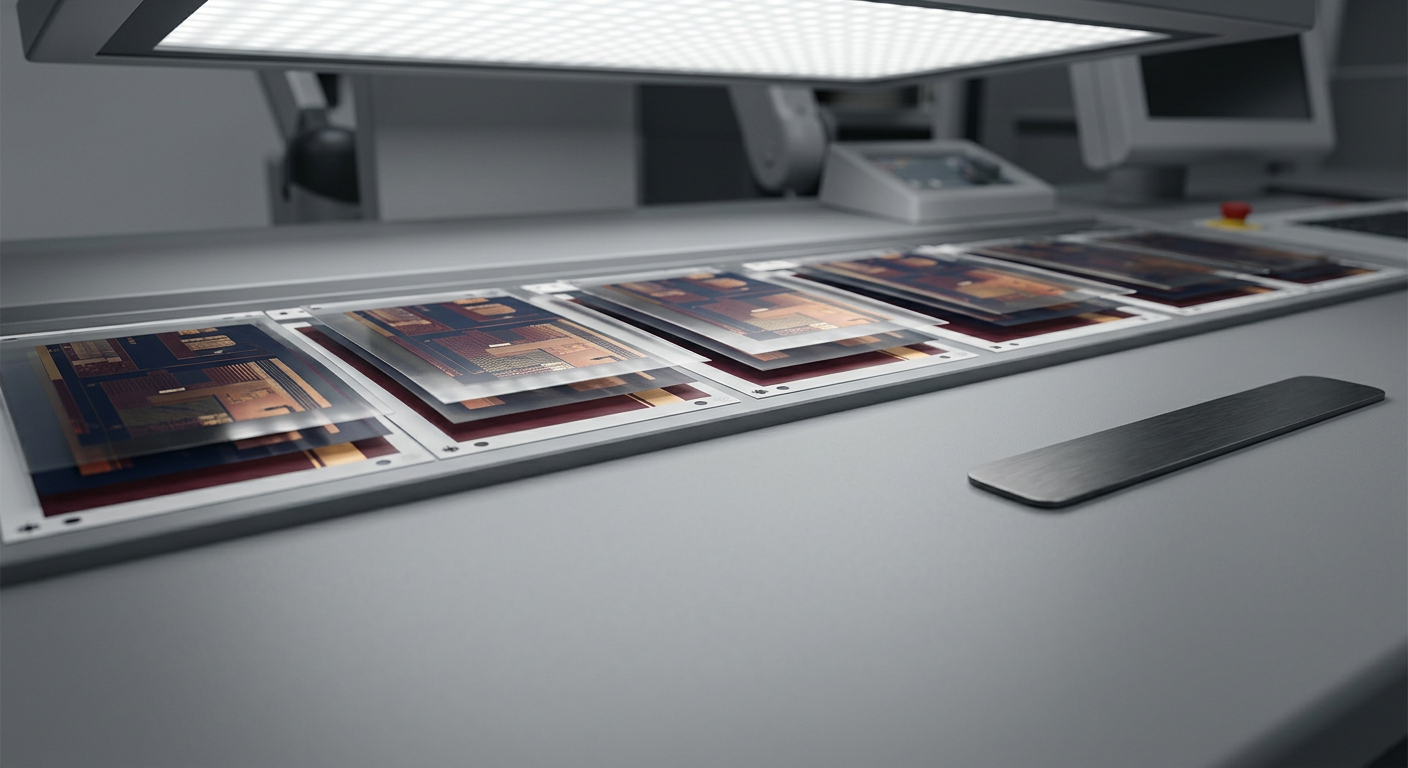

To eliminate ambient light variables, modern laminate printing facilities utilize standardized viewing booths conforming to ISO 3664 standards. The primary standard for packaging evaluation is CIE Standard Illuminant D65.

D65 represents average midday daylight in Western and Northern Europe, with a correlated color temperature of approximately 6500 Kelvin. It provides a balanced spectral power distribution across the entire visible spectrum (380 nm to 780 nm), including an essential ultraviolet component that activates optical brightening agents present in white barrier films.

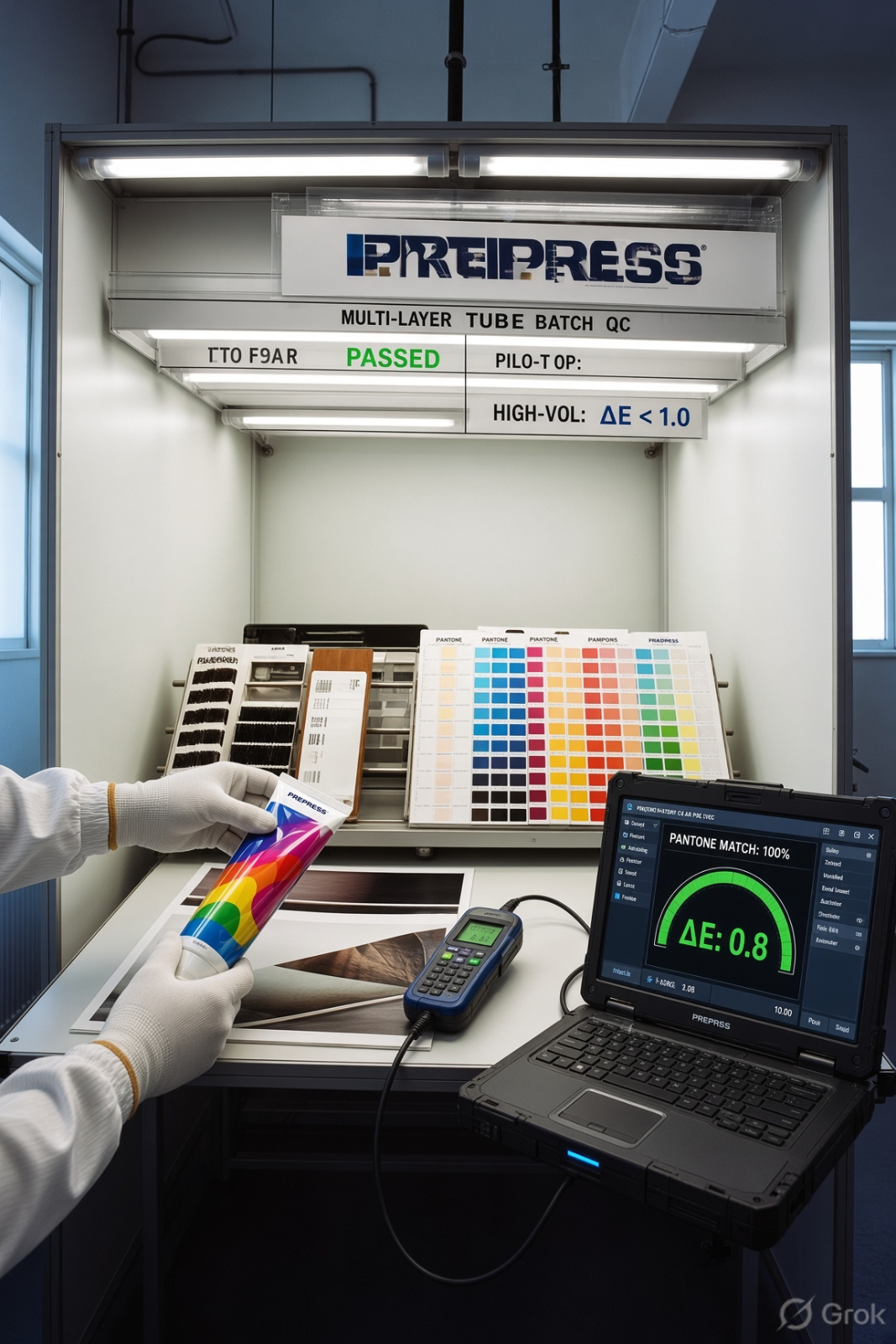

Within a calibrated D65 light booth, three critical factors are held constant:

• Color rendering index (CRI): Tubes are viewed under light sources with a CRI greater than 95, ensuring accurate representation of subtle tonal shifts.
• Neutral matte surround: The interior of the viewing booth is finished in non-reflective Munsell N7 neutral gray paint to prevent surrounding wall colors from reflecting onto the tube surface.
• Standardized geometry: Samples are observed at a fixed 45/0 or 0/45 viewing angle relative to the light source to minimize glare and direct specular reflection from high-gloss varnishes.

Digital Colorimetry and Delta E Benchmarks

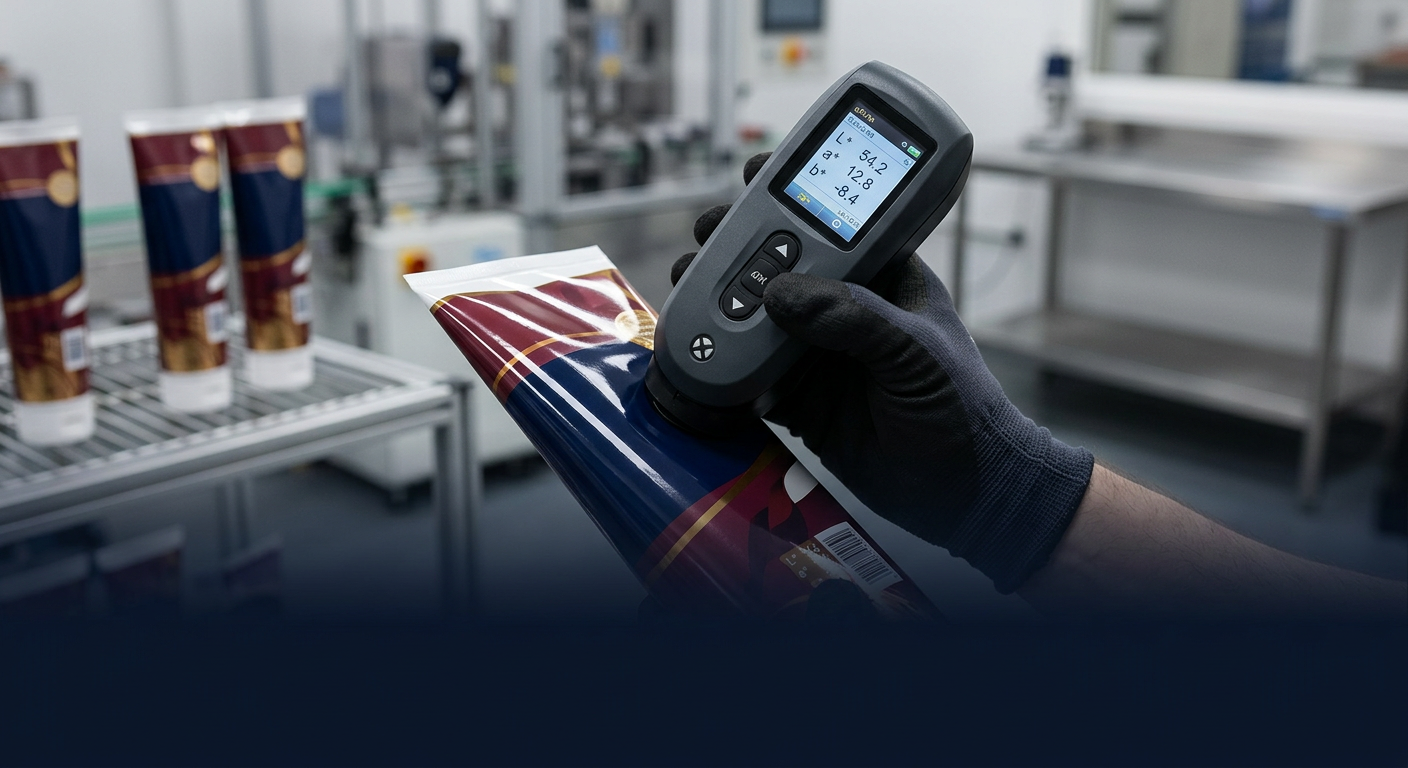

While D65 booths provide consistent human viewing, commercial packaging production relies on digital spectrophotometers to quantify color accuracy numerically. The industry standard metric is Delta E (ΔE), which calculates the mathematical distance between two colors in the CIE Lab* color space.

| Delta E (CIELAB) Range | Perceptibility | Application in Tube Production | | :--- | :--- | :--- | | ΔE < 1.0 | Imperceptible to the human eye | Stringent master target for corporate spot colors and logos | | ΔE 1.0 – 2.0 | Perceptible only through close, side-by-side inspection | Standard commercial tolerance for production web runs | | ΔE 2.0 – 3.0 | Perceptible at a glance by trained colorists | Upper allowable limit for secondary design graphics | | ΔE > 3.0 | Obvious visual mismatch on store shelves | Rejected during press setup and inline quality inspection |

During prepress, physical master swatches are scanned to generate digital master spectral curves. During production, samples pulled from the printed web are measured every few hundred meters to verify that the ΔE remains strictly within the pre-agreed tolerance threshold.

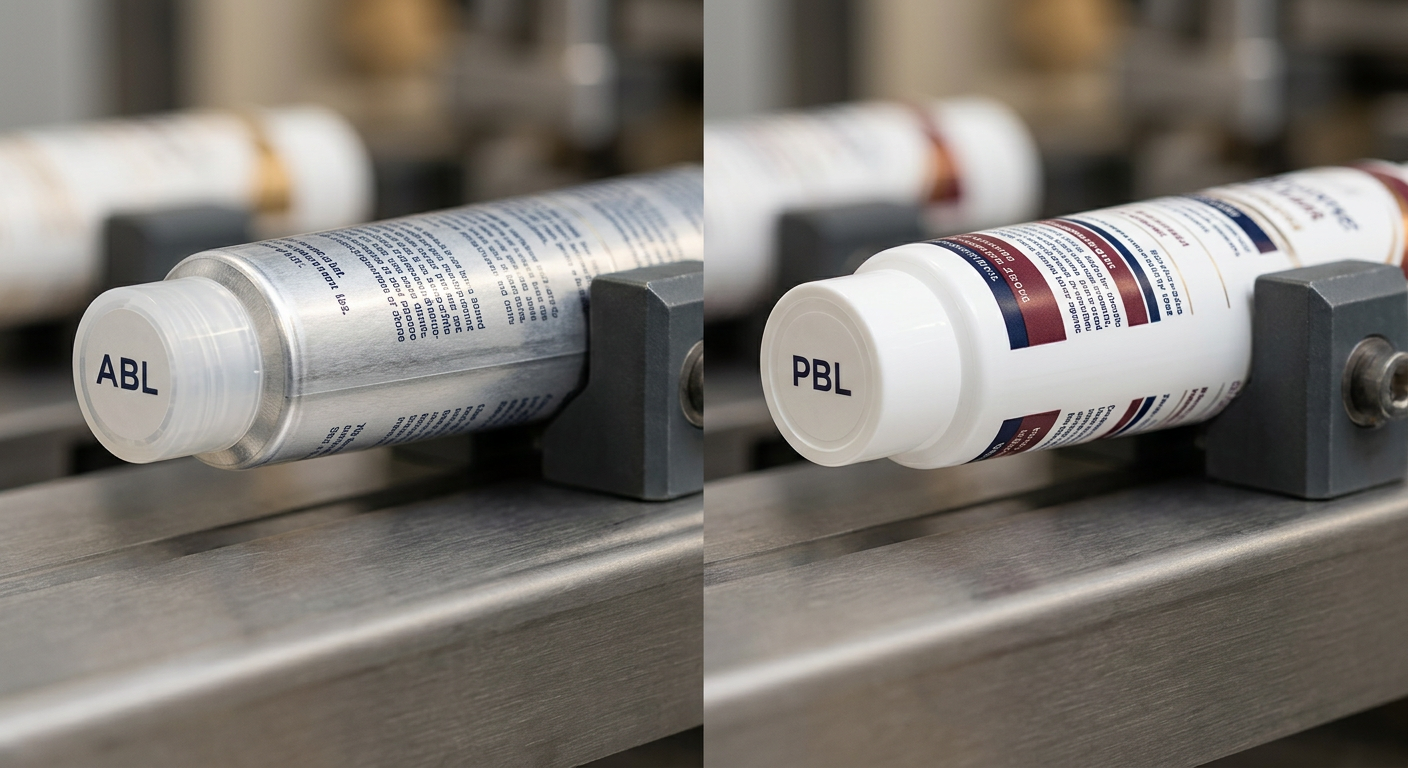

Managing Substrate Optical Properties in ABL and PBL

Multi-layer laminated tubes introduce specific optical challenges depending on the internal barrier construction:

ABL (Aluminium Barrier Laminate). The internal solid aluminium foil core can impart a cool, metallic undertone if white opacity layers are insufficient. Achieving an exact pastel or warm corporate shade requires precise opacity control of the base white ink layer before process colors are laid down.

PBL (Plastic Barrier Laminate). PBL webs typically feature EVOH cores surrounded by opaque white or transparent polyethylene layers. The base polymer resin formula and titanium dioxide loading influence the baseline whiteness (L* value), requiring specific prepress curve compensations to match ABL prints.

To ensure identical brand appearance across product lines that mix ABL (for sensitive active ingredients) and PBL (for elastic bounce-back aesthetics), prepress technicians build dedicated plate curves for each specific laminate structure.

Closed-Loop Ink Dispensing and Viscosity Control

Spectral measurement on the press is only effective when supported by rigorous chemical ink management. Commercial repeatability requires strict control across three variables:

• Automated ink formulation: Primary base inks are dispensed using computer-controlled gravimetric systems that weigh pigments to within fractions of a gram, eliminating batch-to-batch mixing variations.
• Continuous viscosity monitoring: Solvent evaporation during long flexographic runs changes ink viscosity, which directly impacts dot gain and ink film thickness. Automated dosing units maintain constant viscosity throughout high-volume runs.
• Anilox volume consistency: Regular ultrasonic cleaning of anilox rolls ensures consistent cell volume transfer, preventing ink starvation or over-inking across multi-thousand meter production runs.

Talking to your manufacturer about color tolerances

When preparing packaging technical briefs for new product launches or redesigns, procurement and brand teams should establish clear color management parameters early:

• Define digital standards: Supply spectrophotometer data (digital .ase or spectral CxF files) rather than relying solely on physical paper swatch books that fade over time.
• Establish ΔE limits by element: Specify tight tolerances (e.g., ΔE < 1.5) for primary brand logos and wider tolerances (e.g., ΔE < 2.5) for background pictorial elements.
• Align on viewing standards: Ensure quality sign-offs specify D65 viewing conditions to prevent misaligned visual evaluations across partner testing labs.
