Shift Handover Checklists on High-Speed Tube Heading Lines

On high-speed tube heading lines running tens of thousands of units daily, quality drift rarely happens all at once. It creeps in through microscopic variables: a two-degree drop in mold chiller temperature, slight polymer build-up on an orifice forming pin, or a subtle change in pneumatic compression pressure.

When production shifts transition, unrecorded adjustments create variation in shoulder thickness, thread engagement, and weld strength. Maintaining tight dimensional tolerances across continuous 24-hour manufacturing cycles requires rigid, documented shift handover protocols.

The 30-second answer

A standardized shift handover checklist on a tube heading line ensures that tooling alignment, thermal parameters, and dimensional tolerances remain consistent when operating crews change. By conducting mandatory joint parameter audits—including thermal verification, Go/No-Go thread gauging, and destructive shoulder pull testing—plant operators prevent mechanical drift and ensure every tube meets tight dimensional specifications across long production runs.

The Critical Variables on Automated Tube Heading Lines

Tube heading is the process where a pre-cut laminated sleeve is joined with an injected or compression-molded plastic shoulder. This junction is the most mechanically demanding area of the entire tube packaging structure.

Several physical parameters dictate weld integrity and dimensional precision:

• Thermal Energy Profiles: High-frequency induction coils or hot-air heating units must heat the laminate sleeve's inner polyolefin layer to its exact melting point without overheating the outer barrier or print layers.
• Compression Dwell Time & Pressure: The mechanical tooling must compress molten polymer into the shoulder mold cavity with precise tonnage to avoid flash or voids.
• Cooling Stabilization: Chiller circuits within the mold cores must rapidly drop the shoulder temperature below its crystallization point to prevent post-mold warpage or thread ovality.

If the incoming operator inherits an unchecked machine, these interlinked parameters can slowly drift outside process control limits.

Standardizing the Joint Handover Routine

At Aaywon, shift handovers are not passive sign-offs. They are structured, 15-minute collaborative inspections conducted by both the outgoing and incoming line operators.

[Step 1: Machine Parameter Audit]
   ↳ Verify temperatures, pressures, and cycle speeds against Master Sheet

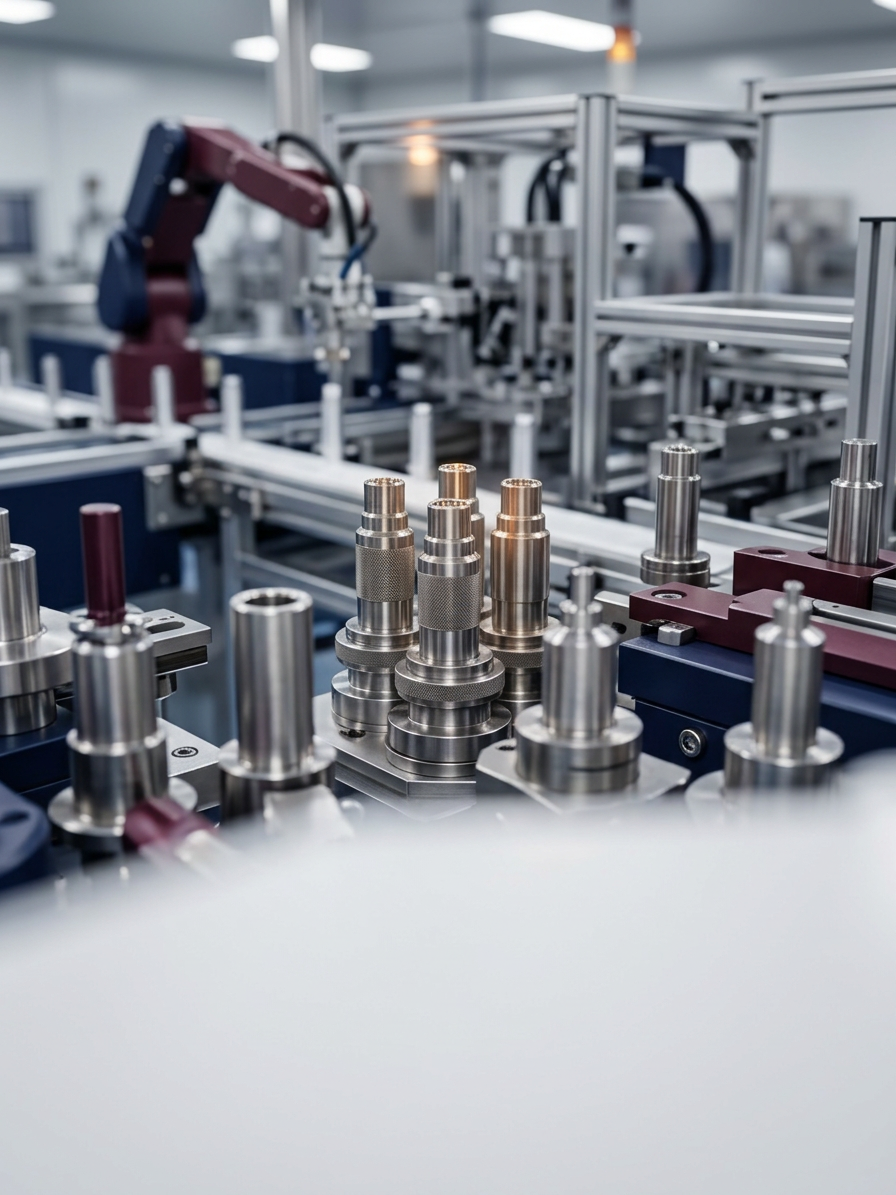

[Step 2: Tooling & Mandrel Inspection]
   ↳ Clean forming pins, check for resin build-up, verify mandrel alignment

[Step 3: In-Line Dimensional Verification]
   ↳ Gauge orifice IDs, thread profiles, and total tube length

[Step 4: Destructive Mechanical Testing]
   ↳ Execute shoulder pull test and pneumatic burst pressure test

[Step 5: Log Sign-Off & Batch Release]
   ↳ Both operators co-sign digital line logs before handover completes

This structured sequence guarantees that production line accountability is continuous and transparent.

Verification Protocols: Gauging and Mechanical Testing

During every handover, physical samples from the final cycle of the outgoing shift and the first cycle of the incoming shift undergo immediate physical quality checks.

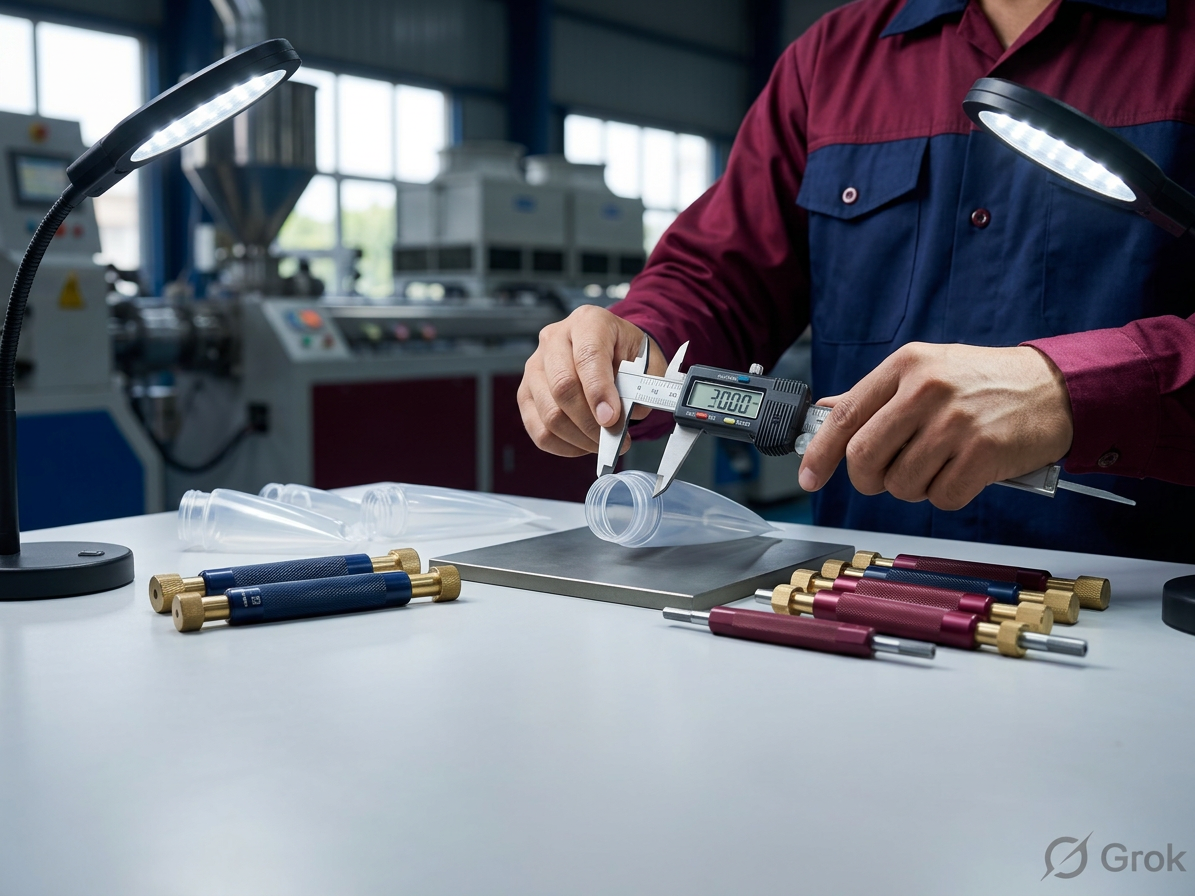

Go/No-Go Dimensional Gauging

Operators use precision plug gauges to verify internal orifice diameters within ±0.05 mm tolerances. Thread pitch, shoulder diameter, and neck height are checked against calibrated Go/No-Go fixtures. This ensures that flip-top and screw closures seat cleanly without binding or leaking.

Destructive Shoulder Weld Pull Testing

Samples are cut into sections and subjected to mechanical tensile pull testing. The shoulder-to-sleeve bond must demonstrate cohesive failure—meaning the laminate material itself yields before the weld seam separates.

Documented Traceability and Continuous Process Control

Every parameter verified during the shift transition is logged in the line's Master Production Record. If an automated sensor detects a temperature deviation or pressure drop outside preset boundaries, the line locks until the supervisor and operator verify calibration.

| Inspection Point | Inspection Method | Acceptance Standard | Action on Deviation | | :--- | :--- | :--- | :--- | | Induction Heat Zone | Digital Pyrometer / Sensor | ± 2°C of Setpoint | Line holds; re-calibrate coil | | Orifice Diameter | Hardened Steel Plug Gauge | Go fits / No-Go blocks | Replace forming pin | | Shoulder Weld Pull | Manual Tensile Fixture | 100% Substrate Tear | Adjust dwell time / temp | | Closure Fit Torque | Digital Torque Tester | Specified cNm Range | Inspect thread mold inserts |

This methodical discipline prevents scrap generation, maintains consistent cap application torque for automated filling lines, and guarantees packaging reliability for end brands.

Talking to your manufacturer about line stability

When vetting packaging suppliers for large-scale personal care or pharmaceutical contracts, procurement teams should evaluate plant-floor operational discipline:

1. Request Shift Handover SOPs: Ask how machine parameters are audited and documented during 24-hour continuous operations.
2. Review In-Process Quality Controls (IPQC): Confirm the frequency of destructive pull testing and dimensional thread inspections.
3. Inspect Batch Traceability: Ensure every carton of finished tubes can be traced back to specific production shifts, machine lines, and raw laminate master reels.

At Aaywon Lamitubes, our production floor combines high-precision heading technology with strict operational discipline across every shift. We manufacture multi-layer ABL and PBL tubes in Baddi, Himachal Pradesh and respond to briefs within 48 hours.
