Preventing Delamination in High-Surfactant Facial Cleanser Packaging

When scaling a foaming facial cleanser, oil-infused face wash, or exfoliating gel formulation from pilot lab batches to high-speed commercial tube filling, chemical compatibility testing often reveals unexpected failure modes. Brand formulation teams frequently discover that standard laminate structures exhibit cosmetic tunneling, sleeve bubbling, or full layer separation after 90 days of accelerated real-time stability testing.

Selecting the correct laminated tube structure requires understanding how aggressive surfactants interact with internal polymer contact layers and adhesive interfaces under sustained contact.

The 30-second answer

Facial cleansers formulated with high surfactant loads, botanical essential oils, and active hydroxy acids can permeate standard inner polyethylene films over time, weakening adhesive tie layers and causing sleeve delamination. Engineering multi-layer Plastic Barrier Laminates (PBL) with coextruded EVOH cores and specialized functional tie resins prevents chemical migration, maintaining laminate bonding, barrier integrity, and mechanical flex strength throughout retail distribution.

Why aggressive cosmetic formulations attack laminate structures

Facial cleansers are among the most chemically challenging personal care products to package in flexible tubes. Unlike simple water-in-oil creams, modern cleansers contain complex blends of functional surfactants, solubilizers, and lipid-replenishing agents.

• Non-ionic and amphoteric surfactants. Ingredients such as coco-glucoside, decyl glucoside, and cocamidopropyl betaine lower surface tension and actively search for micro-porosities within the inner plastic contact layer.
• Essential oils and botanical lipids. Jojoba oil, squalane, tea tree oil, and citrus extracts are aggressive natural plasticizers capable of swelling basic low-density polyethylene (LDPE) contact layers.
• Active chemical exfoliants. Salicylic acid (BHA), glycolic acid (AHA), and gluconolactone alter internal pH dynamics, accelerating the breakdown of standard solvent-based adhesives.

When these compounds diffuse across the inner sealant layer, they attack the interface where the barrier layer is bonded to the outer substrate, weakening the chemical bond that keeps the tube wall consolidated.

Anatomy of delamination: how layer separation occurs

Laminate failure does not happen instantaneously. It progresses through distinct physical and chemical phases during product shelf life:

1. Permeation through the contact layer. Surfactant molecules and free essential oils dissolve into the amorphous regions of the inner polyolefin contact layer, migrating outward toward the core.
2. Chemical degradation of the tie layer. As the migrating actives reach the tie layer—the specialized polymer layer bonding the polyolefin to the central barrier—they soften the adhesive bond through plasticization or chemical degradation.
3. Flexural shear during squeeze cycles. Once the adhesive strength drops below 2.0 N/15mm, normal consumer squeezing forces the unbonded layers apart, causing visible bubbles, creasing, and air pockets throughout the tube sleeve.

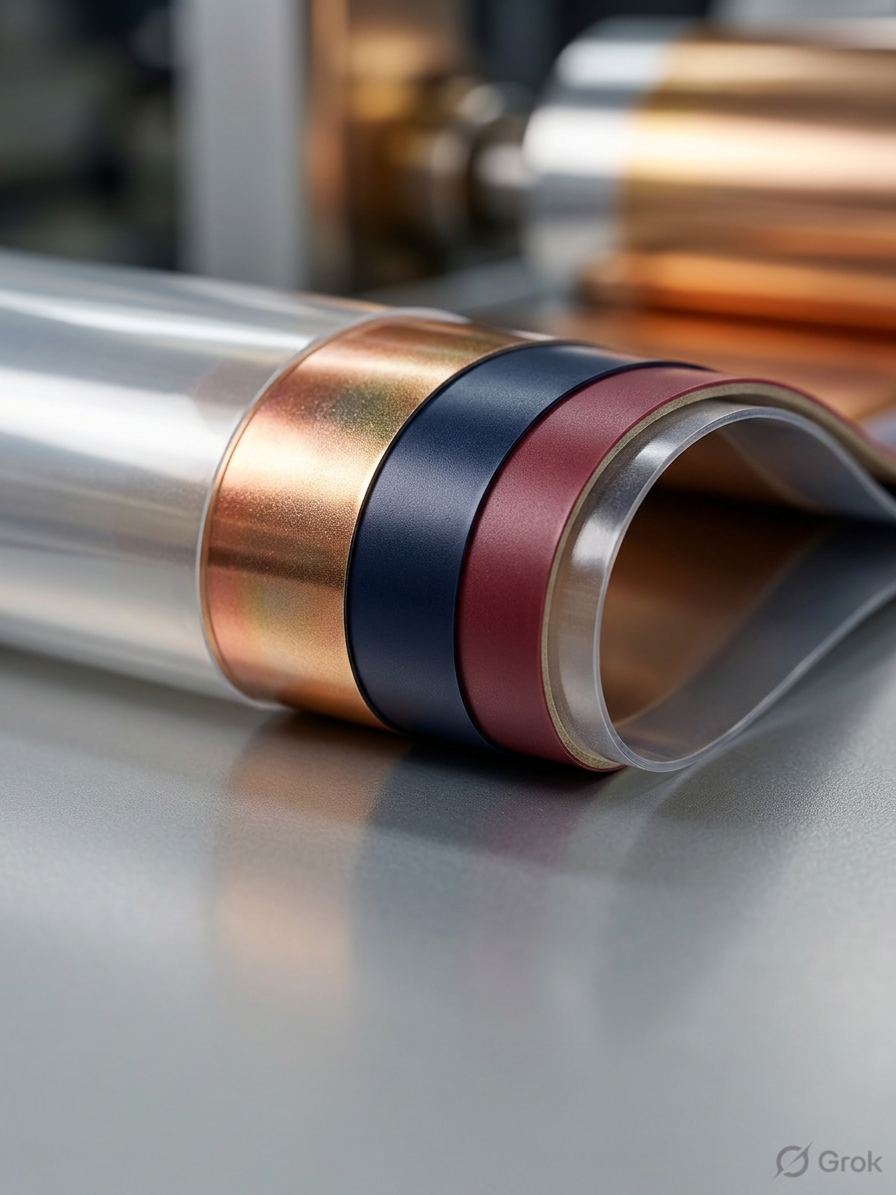

Engineering multi-layer PBL for chemical resistance

Preventing delamination requires tailoring the entire multi-layer laminate web rather than simply increasing the thickness of the tube wall.

Specialized inner contact polymers

Instead of conventional standard-grade LDPE, high-surfactant packaging requires linear low-density polyethylene (LLDPE) or high-density polyethylene (HDPE) blends. These polymers feature higher crystallinity, smaller amorphous gaps, and greater chemical inertness, significantly reducing the permeation rate of active surfactants.

Coextruded functional tie resins

Modern Plastic Barrier Laminates utilize coextruded maleic anhydride-grafted polyolefins. Unlike traditional solvent-based laminating adhesives that can dissolve when exposed to cosmetic oils, coextruded tie layers create direct covalent and hydrogen bonds with both the polyolefin matrix and the central barrier film. These bonds maintain high peel strength even when exposed to migrating cosmetic oils.

EVOH core barrier integration

Ethylene Vinyl Alcohol (EVOH) serves as the central barrier layer, protecting sensitive formulations from atmospheric oxygen ingress while preventing volatile aromatic oils from escaping. Because EVOH is chemically resistant to organic solvents and lipophilic substances, it forms an impassable boundary that protects outer decorative layers from internal chemical exposure.

| Laminate Property | Standard Commercial Laminate | Engineered Chemical-Resistant PBL | | :--- | :--- | :--- | | Inner Layer Material | Standard LDPE (60–80 µm) | High-Crystallinity LLDPE/HDPE Blend (70–100 µm) | | Bonding Mechanism | Solvent-based Polyurethane Adhesive | Coextruded Functional Maleic Anhydride Tie Layer | | Core Barrier Layer | Basic Film Core | Symmetrical EVOH Core (15–25 µm) | | Peel Strength Retention | Fails (<1.5 N/15mm after 60 days) | Retains >3.5 N/15mm after 180 days | | Surface Appearance | Prone to tunneling and blistering | Smooth, intact surface across full lifecycle |

Stability testing protocols for cosmetic packaging procurement

Packaging engineers and procurement managers must establish clear compatibility testing protocols prior to final production runs. Relying solely on standard empty-tube burst pressure or pinhole inspection is insufficient for chemically active formulations.

• Accelerated thermal aging. Fill production-grade sample tubes with the target bulk formulation, seal the bottom crimp, and store them at 40°C and 45°C with 75% relative humidity for 12 weeks (equivalent to 12 to 24 months at ambient room temperature).

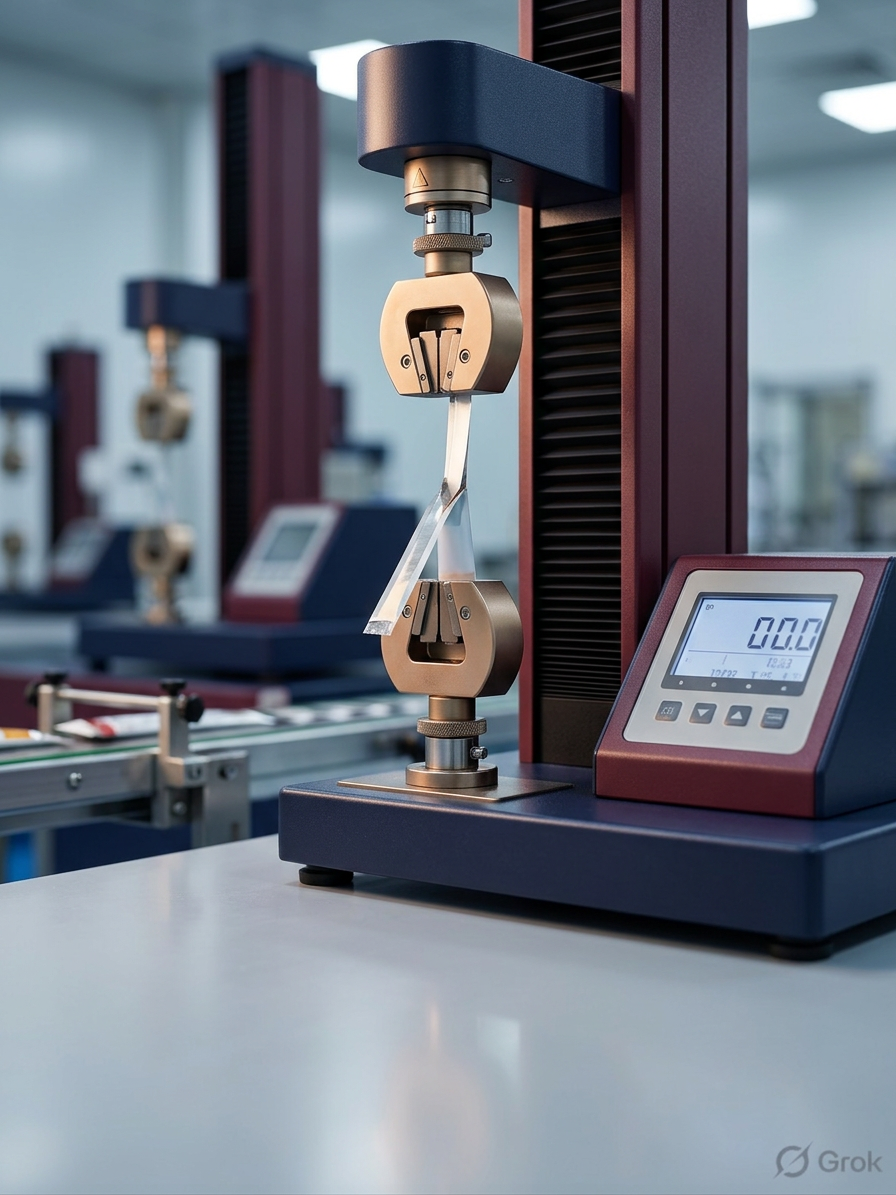

• Layer peel strength verification. Perform standardized 180-degree T-peel tensile tests (ASTM D1876) on sliced sleeve sections at 30-day intervals to verify that the bond strength between the barrier and outer layers remains stable.
• Dynamic flex and squeeze cycling. Subject filled, aged tubes to repetitive mechanical squeezing on automated cycling fixtures to confirm that hydraulic product movement does not initiate delamination along high-stress flex lines.

Talking to your manufacturer about formulation compatibility

When briefing your laminated tube manufacturer, provide specific details regarding your bulk chemistry to ensure the correct laminate structure is specified before tooling and production setup:

• Share the percentage of active surfactants, free oils, and alcohol content in your cleanser.
• Request sample sleeves with high-density inner contact layers and coextruded tie resins for pilot compatibility testing.
• Confirm that the barrier specification (EVOH micron thickness and symmetry) matches your product shelf-life targets.

Providing comprehensive formulation parameters early prevents costly redesigns, regulatory delays, and batch rejections on the filling line.

Aaywon manufactures multi-layer laminated tubes at our plant in Baddi, Himachal Pradesh. Our engineering team assists packaging heads and cosmetic formulators in selecting optimal ABL and PBL structures, responding to all technical specifications and inquiries within 48 hours.
