Managing Tube Diameter Transitions Across 19mm to 50mm Production Mandrels

When expanding a personal care, cosmetic, or pharmaceutical portfolio, product development teams frequently navigate multiple volume requirements. A single formulation range might encompass a 10ml concentrated targeted treatment, a 50ml daily commuter size, and a 200ml family retail pack. Translating these diverse volumetric demands into multi-layer laminated tubes requires an understanding of mandrel tooling, forming geometries, and production changeover parameters.

The 30-second answer

Tube diameter governs both volumetric capacity and structural ergonomics. Transitioning between diameter increments—from 19mm for targeted precision formats up to 50mm for high-volume body care and oral care—requires dedicated tooling sets consisting of forming collars, welding mandrels, cooling sleeves, and heading molds. Efficient manufacturing relies on modular changeover systems that preserve seam integrity, wall thickness uniformity, and shoulder concentricity across every size transition without extensive downtime.

The Mechanical Architecture of Tube Diameter Changeovers

In multi-layer laminate tube conversion (both ABL and PBL), tube sleeves are formed continuously from flat, pre-printed web stock. The flat webbing is pulled over a cylindrical mandrel and shaped into a continuous cylinder by an external forming collar before undergoing high-frequency or hot-air longitudinal welding.

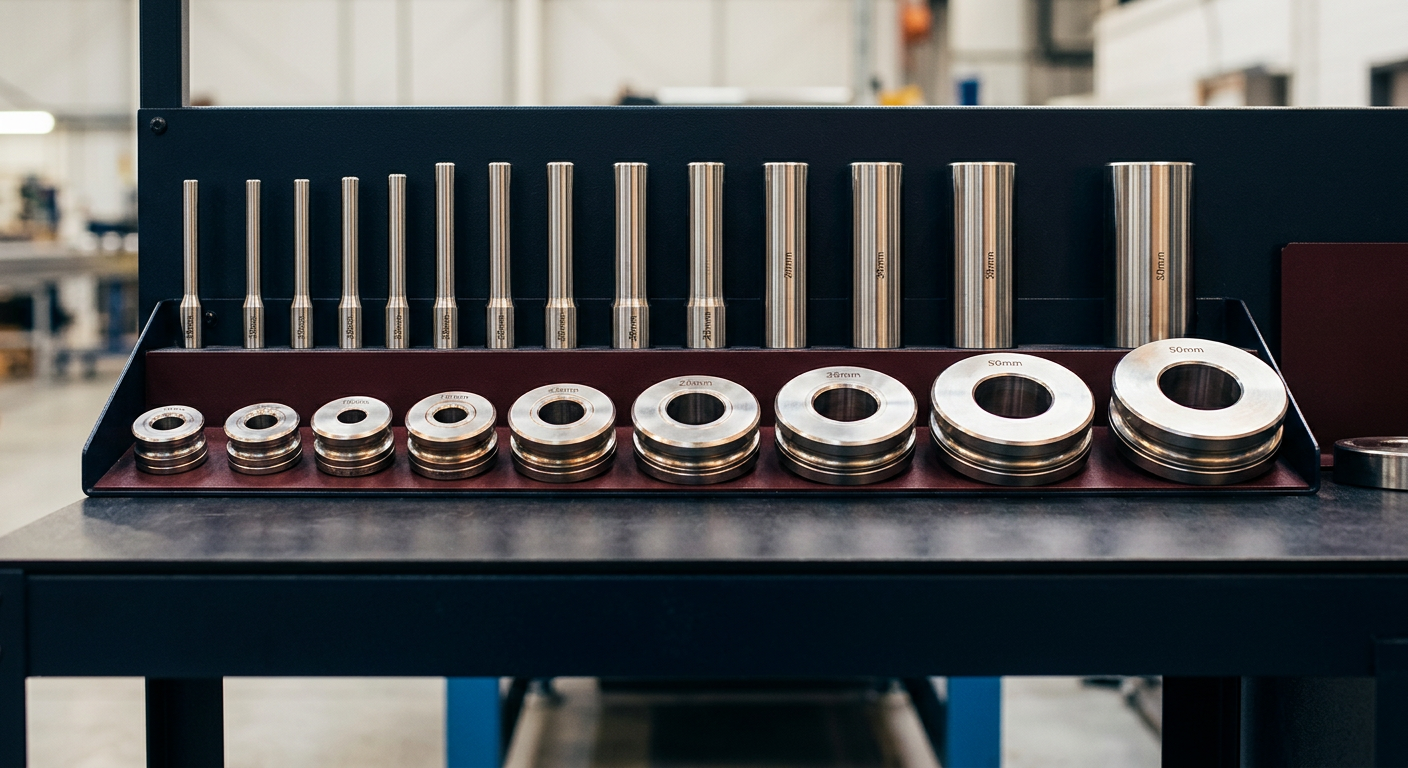

Each specific tube diameter requires an entirely dedicated mechanical tooling train:

• Forming Collar and Shoe: Guides the flat laminate web into a precise tubular profile, managing tension along both edges to ensure accurate overlap or butt-welding geometry.
• Internal Mandrel: A precision-ground steel cylinder that supports the inner diameter of the tube sleeve during seam welding and cooling.
• Welding and Sizing Blocks: Delivers induction energy or concentrated thermal airflow to fuse the longitudinal seam under calibrated pressure rollers.
• Rotary Cut-off Unit: High-speed orbital knives timed to slice the continuous sleeve into discrete lengths with perpendicular, burr-free edges.

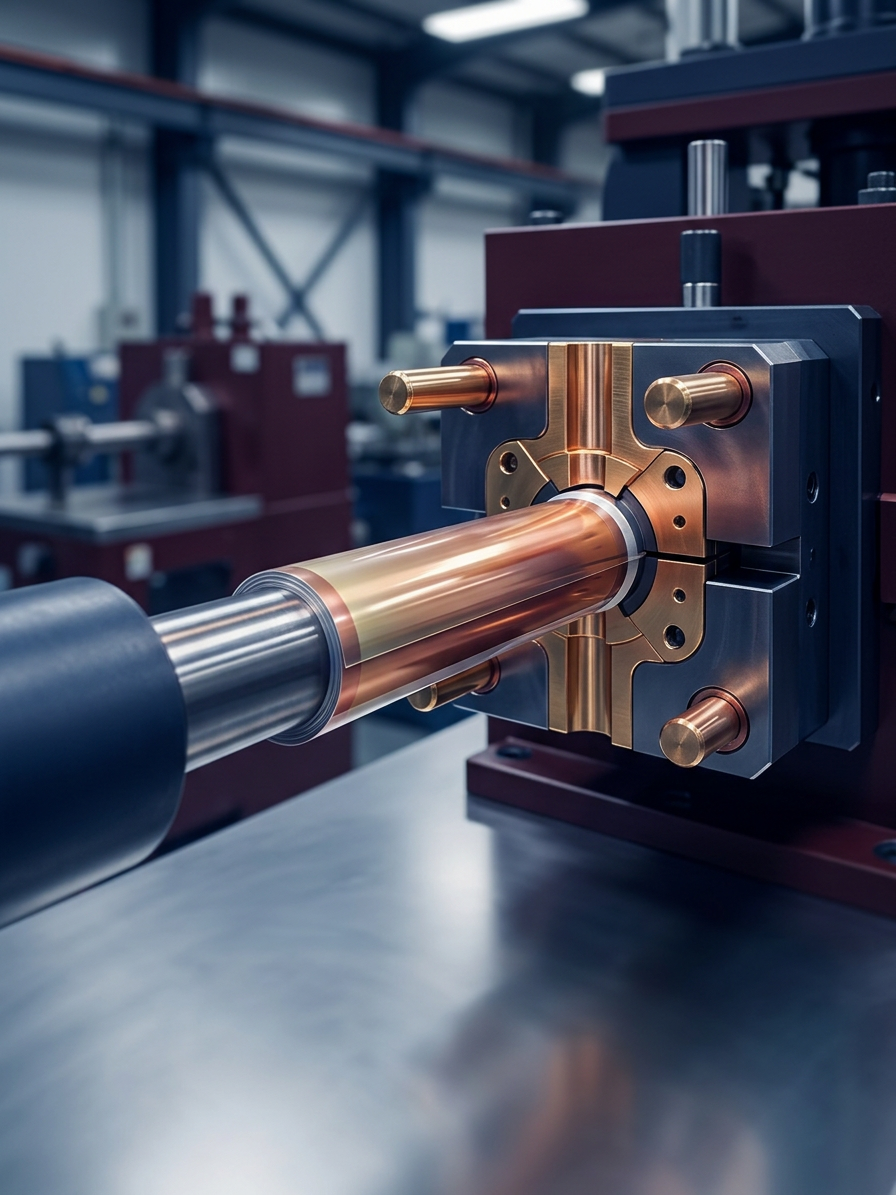

• Heading and Shoulder Welding Station: Holds the cut sleeve on a dedicated heading mandrel while compression-molding or welding the pre-molded shoulder and orifice.

Because multi-layer barrier laminates contain functional barrier layers (such as aluminium foil or EVOH cores), mandrel tooling must operate with zero lateral runout. A misaligned mandrel causes uneven seam thickness, barrier micro-fractures, or ovality defects that prevent automated capping downstream.

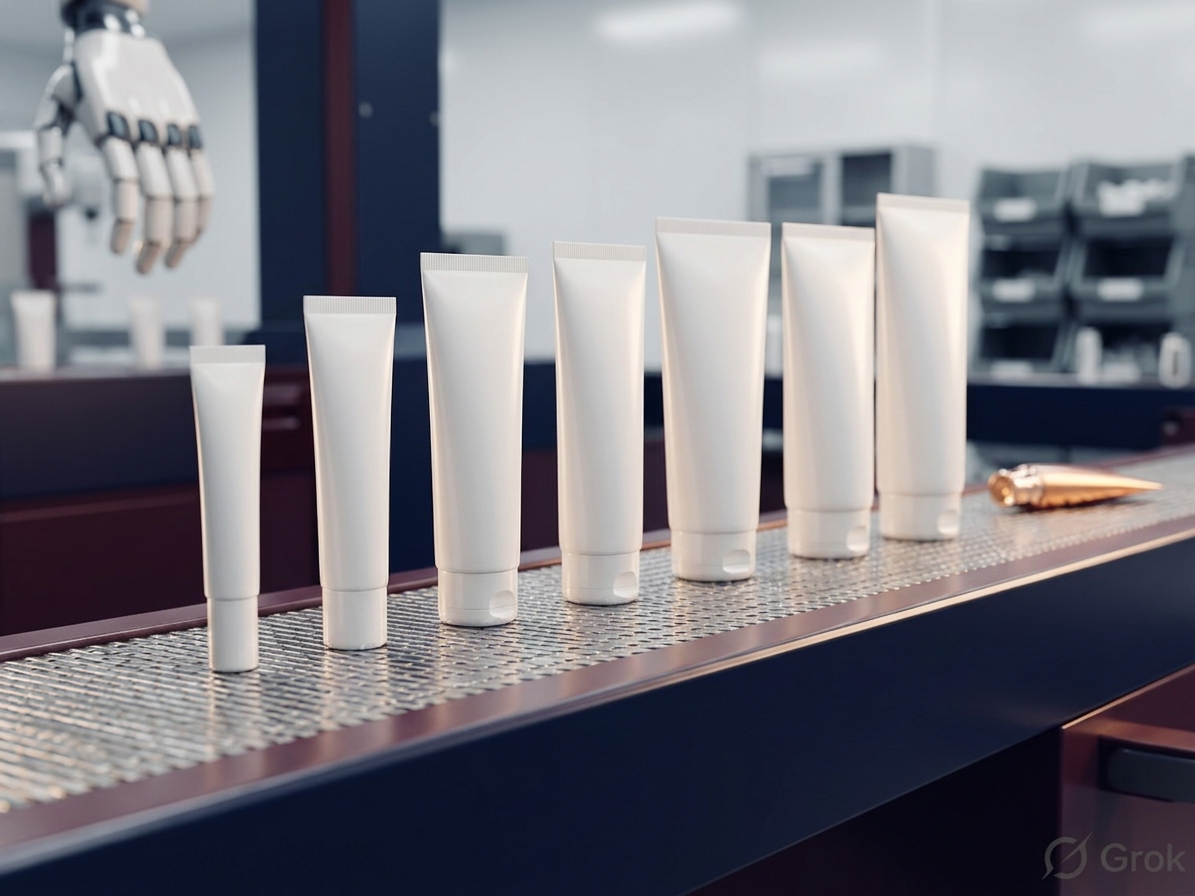

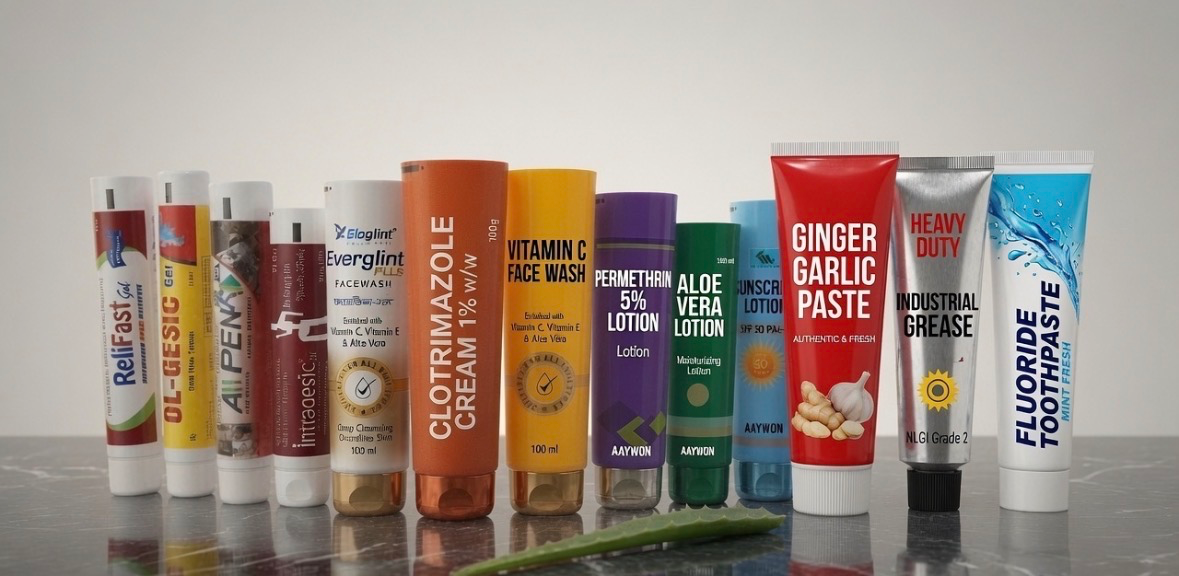

Standard Diameter Profiles and Volumetric Allocations

Selecting the correct diameter is a balance between target fill volume, overall pack height, and consumer dispensing ergonomics. A tube that is too long and narrow will buckle under hand pressure; a tube that is too wide and short provides poor dispensing control.

| Tube Diameter | Typical Fill Volume | Standard Sleeve Length | Primary Applications | | :--- | :--- | :--- | :--- | | 19mm | 5ml – 15ml | 60mm – 100mm | Eye creams, spot treatments, pharmaceutical ophthalmic/topical ointments | | 22mm / 25mm | 15ml – 35ml | 70mm – 120mm | Lip balms, travel serums, dental pastes, premium trial sizes | | 30mm | 30ml – 75ml | 85mm – 140mm | Hand creams, facial cleansers, daily sunscreens, foundation bases | | 35mm | 50ml – 100ml | 95mm – 160mm | Facial scrubs, shave gels, hair styling balms, standard topical pharma | | 40mm | 75ml – 150ml | 110mm – 180mm | Body lotions, sun care lotions, oral care pastes, foot creams | | 50mm | 150ml – 250ml | 120mm – 210mm | High-volume hair conditioners, body washes, professional salon formats |

Small Diameters (19mm to 25mm)

Smaller diameters demand micro-tolerance control. The seam area accounts for a higher percentage of the total sleeve circumference, meaning heat dissipation must be strictly regulated to avoid thermal distortion. These sizes typically integrate precision nozzle tips, ophthalmic applicators, or roller-ball fitments.

Medium Diameters (30mm to 35mm)

Medium diameters represent the standard core of personal care and facial cosmetics. They provide an optimal surface-to-volume ratio for high-definition flexographic printing and 360-degree graphics, supporting standard flip-top and screw closures.

Large Diameters (40mm to 50mm)

Large format sleeves require increased mechanical hoop strength to prevent body collapse after dispensing. Mandrel systems for 40mm to 50mm lines maintain precise laminate tension across broader web widths, ensuring that wall thicknesses remain uniform around the entire circumference.

Engineering Challenges During Diameter Transitions

Changing an automated conversion line from one diameter to another involves more than just swapping out the steel core. Plant engineers must synchronize multiple dynamic variables to preserve product integrity.

1. Seam Heat-Flux Calibration

As tube diameter increases, web feed speeds and seam dwell times change. A 19mm sleeve moves through the forming shoe under different linear tension than a 50mm sleeve. Energy input on the high-frequency induction generator or hot-air nozzle must be re-profiled to achieve full polymer fusion without overheating the internal EVOH or aluminium barrier core.

2. Sleeve Ovality and Concentricity Control

If the internal mandrel and cooling jackets are not perfectly concentric, the formed sleeve will exhibit minor ovality. While barely visible to the naked eye, oval sleeves cause jams in automated downstream capping machinery and lead to inconsistent shoulder compression welds. Precision mandrel calibration maintains roundness tolerances within ±0.15mm.

3. Shoulder Heading Force Dynamics

Joining the tube sleeve to the shoulder—whether via compression molding or pre-formed shoulder welding—requires diameter-specific tooling dies. Larger 50mm shoulders require significantly higher clamping pressures and broader heat dispersion than delicate 19mm formats to ensure zero leak paths at the sleeve-to-shoulder interface.

Planning Portfolio Scalability with Your Converter

For brand managers and procurement specialists, line flexibility is essential for responsive supply chain management. When introducing new product variants or scaling up from clinical trial quantities to national retail launches, understanding your manufacturer's tooling capabilities prevents costly launch delays.

When scoping multi-diameter projects, clarify the following technical parameters:

• Web Slitting Capabilities: Ensure the converter can slit wide master laminate reels into exact narrow web widths tailored to small-diameter sleeves without edge fraying.
• Standard Tooling Availability: Inquire whether standard diameters (e.g., 19mm, 25mm, 35mm, 50mm) utilize existing in-house tooling arrays to reduce initial capital expenditure.
• Orifice and Cap Compatibility: Verify that shoulder molds across each diameter range correspond to your required closure specifications, whether needle-nose, tamper-evident flip-tops, or standard screw threads.
• Minimum Run Sizes per Diameter: Review how rapid-changeover tooling affects Minimum Order Quantities (MOQs) when splitting production across multiple SKU sizes.

Talking to your manufacturer

Managing diameter transitions across 19mm to 50mm production mandrels requires dedicated tooling infrastructure, standardized calibration routines, and precise thermal control. By partnering with an engineered packaging manufacturer capable of agile changeovers, brands can easily maintain cohesive aesthetic presentation and reliable barrier performance across every format in their product line.

Aaywon manufactures engineered multi-layer ABL and PBL laminated tubes across full diameter ranges at our facility in Baddi, Himachal Pradesh. We evaluate project parameters, volume requirements, and tooling configurations, responding to technical briefs within 48 hours.
