In-Line Metallic Sheen Effects Using Silver and Transparent ABL Webbing

When designing high-impact personal care and cosmetic packaging, brand managers frequently specify metallic logos, chrome borders, and reflective badges to communicate premium value. However, traditional post-press decoration methods like secondary hot stamping add tooling expenses, require separate production passes, and increase registration tolerance risks.

The 30-second answer

By utilizing the inherent aluminium foil core of silver Aluminium Barrier Laminate (ABL) webbing, brands can create selective mirror-sheen, chrome, and colored metallic effects in a single in-line flexographic printing run. By applying high-opacity white ink to mask non-metallic areas and leaving decorative elements exposed or tinted with translucent inks, you achieve precise metallic branding with zero secondary foil tooling costs.

The Anatomy of Silver ABL Web as a Design Substrate

Aluminium Barrier Laminate (ABL) is primarily selected for its absolute barrier against moisture, oxygen, and light. But from a graphic design and print engineering perspective, ABL is also a continuous, highly uniform reflective silver substrate.

Rather than regarding the aluminium core merely as an internal barrier layer, precision flat-web flexographic printing treats the silver foil as the foundational visual canvas.

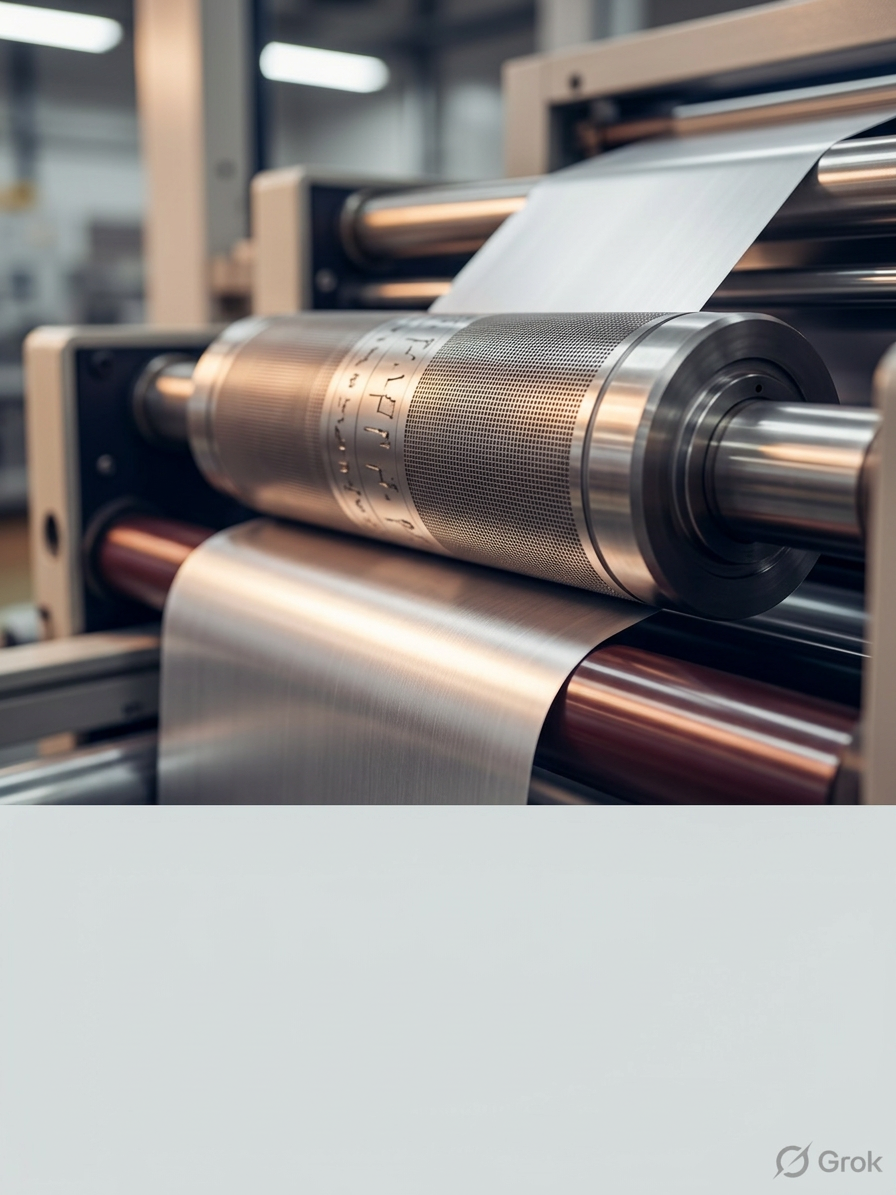

Step-by-Step: How Selective In-Line Metallic Printing Works

Transforming raw silver laminate into complex multi-finish tube graphics involves four synchronized plate stations during the web printing phase:

1. Selective Opaque White Underprinting (Masking)

The press lays down an engineered, high-opacity white ink over all areas intended to display non-metallic elements—such as body copy, regulatory text, ingredient panels, and solid background colors. This "mask" neutralizes the silver reflection, creating a neutral base for true-color reproduction.

2. Substrate Windowing (Mirror Chrome Accents)

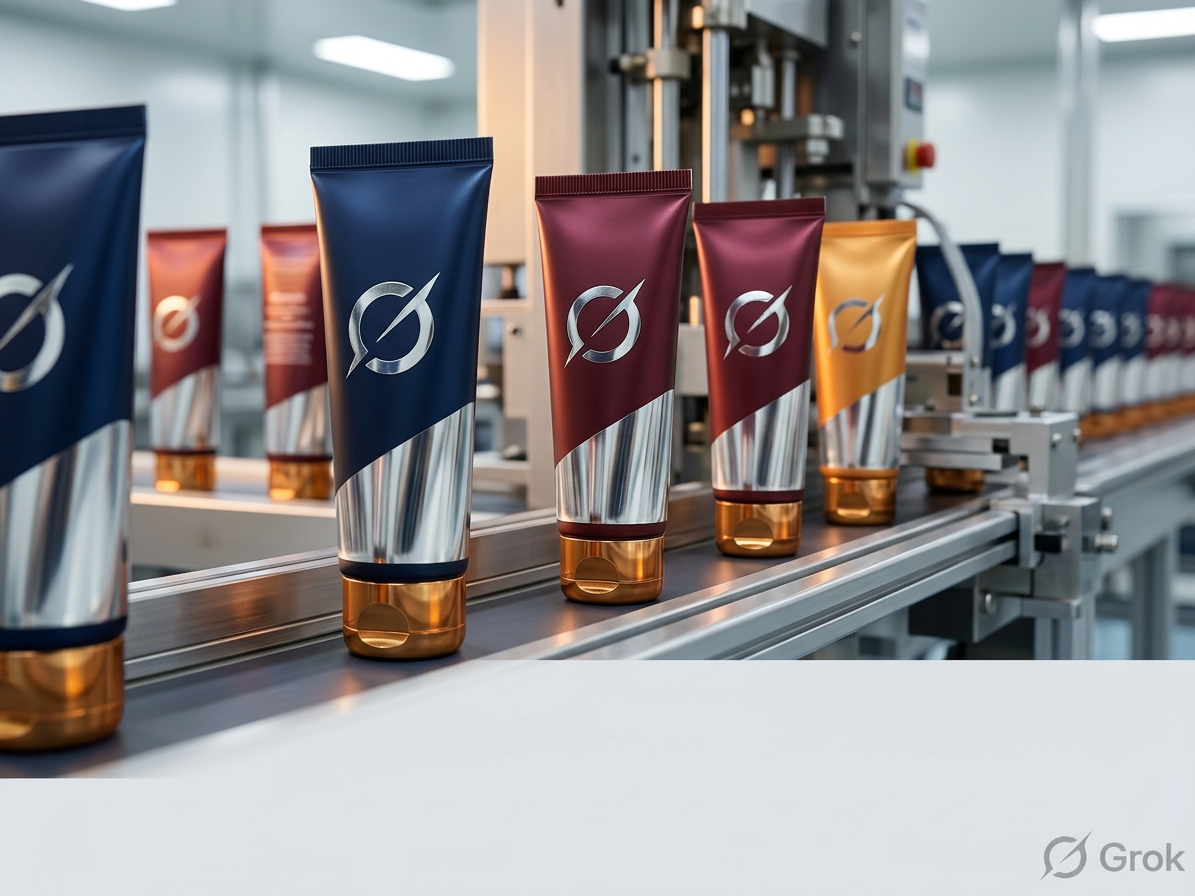

Logos, brand emblems, and key typography are knocked out of the opaque white plate. The unprinted silver substrate remains exposed through the transparent outer polyethylene layer, presenting an ultra-bright, mirror-finish silver chrome effect that aligns perfectly with adjacent graphics.

3. Translucent Color Overprinting (Metallic Colors)

To achieve metallic gold, rose gold, bronze, copper, or anodized emerald finishes, transparent process inks (CMYK) are printed directly over the exposed silver substrate without a white backing. The light reflects through the dyed ink layer off the aluminium core, producing brilliant metallic sheens in any pantone shade.

4. Registered Matte and Gloss Varnishing

Finally, a spot matte varnish is applied over the opaque background areas, while a spot gloss varnish is applied over the metallic accents. This tactile and optical contrast amplifies the visual depth of the reflective branding.

Comparison: In-Line Silver ABL Decoration vs Hot Foil Stamping

| Technical Parameter | In-Line Silver ABL Masking | Secondary Hot Foil Stamping | | :--- | :--- | :--- | | Production Passes | Single continuous pass | Multi-step secondary operation | | Tooling & Die Costs | Standard flexo plate only | Dedicated heated brass/copper stamping dies | | Registration Accuracy | Micron-precise cylinder registration | Variable secondary mechanical alignment | | Metallic Color Flexibility | Infinite in-line translucent ink mixing | Restricted to pre-manufactured foil rolls | | Fine Detail & Micro-Text | High resolution flexo screen capabilities | Prone to foil bridging and edge fraying | | Substrate Compatibility | Standard Silver ABL structures | Extruded plastic, PBL, or coated ABL |

Eliminating Registration Errors and Secondary Processing Waste

In standard tube converting lines, hot foil stamping requires feeding formed cylindrical tubes through secondary rotary stamping machinery. Any mechanical vibration or sleeve ovality can cause foil registration shifts of up to ±0.5 mm.

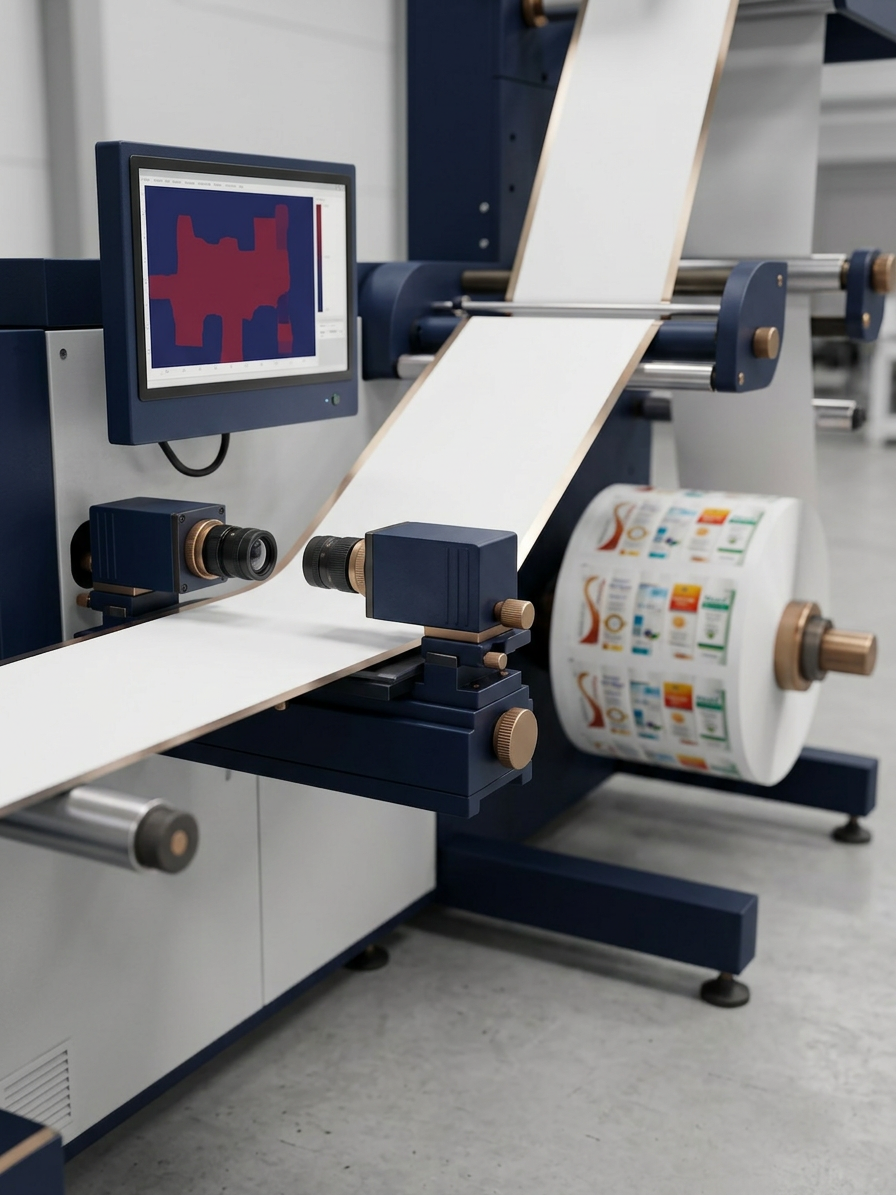

Because ABL in-line metallic printing occurs entirely on continuous flat web prior to sleeve side-seaming, all color stations, opaque white masks, and varnishes are governed by synchronized servo-driven print cylinders. Registration tolerances are maintained within tight sub-millimeter specifications, ensuring that fine lines, metallic borders, and micro-typography remain sharp across production batches.

Talking to Your Manufacturer About Metallic ABL Decoration

To optimize artwork for in-line metallic ABL production, prepare your prepress files and technical brief with the following considerations:

• White Mask Vector Separation: Supply a dedicated spot-color channel in your vector artwork (e.g., "White_Mask") that defines exactly where the opaque barrier ink should and should not print.
• Gradient Transitions: Specify whether metallic elements should possess hard graphic boundaries or soft halftone vignettes transitioning from solid color into raw metallic sheen.
• Color Swatch Matching for Metallics: If you require specific metallic shades (such as champagne gold or copper), supply both the target Pantone reference and a sample drawdown swatch for press matching.
• Cap and Dispenser Matching: Coordinate cap color and finish (e.g., matte metallized caps or translucent closures) to complement the selective metallic highlights on the tube sleeve.

At Aaywon Lamitubes, we operate specialized multi-station flexographic printing and laminating lines at our facility in Baddi, Himachal Pradesh. Our prepress and manufacturing teams assist cosmetic and personal care brands in translating structural packaging concepts into production-ready laminated tubes with 48-hour brief turnaround times.
